MDI-4000 Series Serial Interface Manual
4
2.1.2 Model Name Description
The model name indicates the shape of the scan engine. The shape describes whether the
decoder board is separate from or mounted to the camera, as well as whether low-power
consumption mode is installed.
Model Name Descriptions
Model Name
Description
MDI-4150
Decoder board separate from camera. Low-power consumption mode installed.
MDI-4050
Decoder board mounted to camera. Low-power consumption mode installed.
MDI-4100
Decoder board separate from camera.
MDI-4000
Decoder board mounted to camera.
2.2 Scan Area
The scan engine reads a barcode by acquiring its image. The imaging area is not actually
visible. So, position the LED Aiming beam over the barcode.

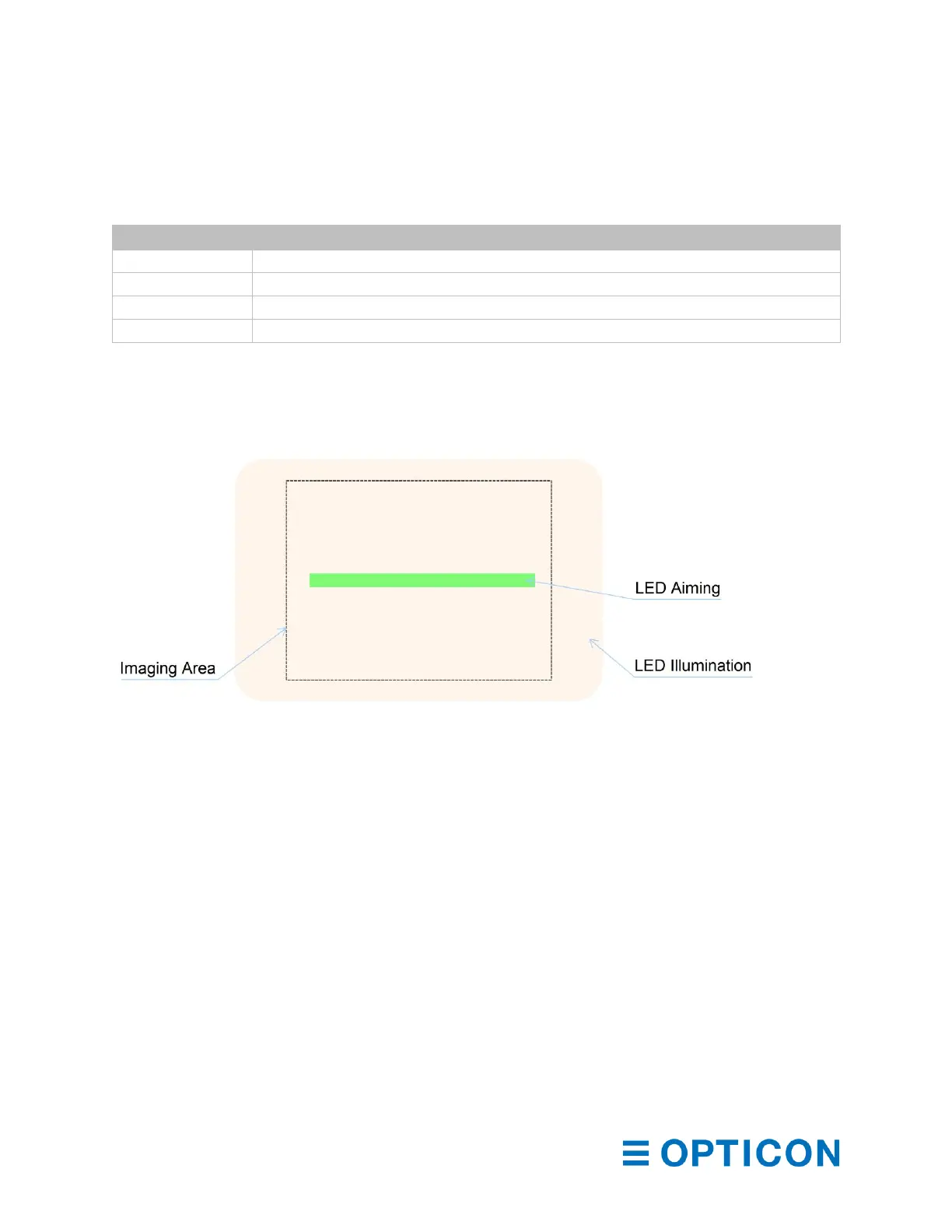

Figure 1: Scan Area
For information about reading the depth of field, see “Technical Specifications” on page 108.
To configure the scan engine to only read the center of the LED Aiming beam, see “Central
Reading” on page 91.
