MDI-4000 Series Serial Interface Manual
6

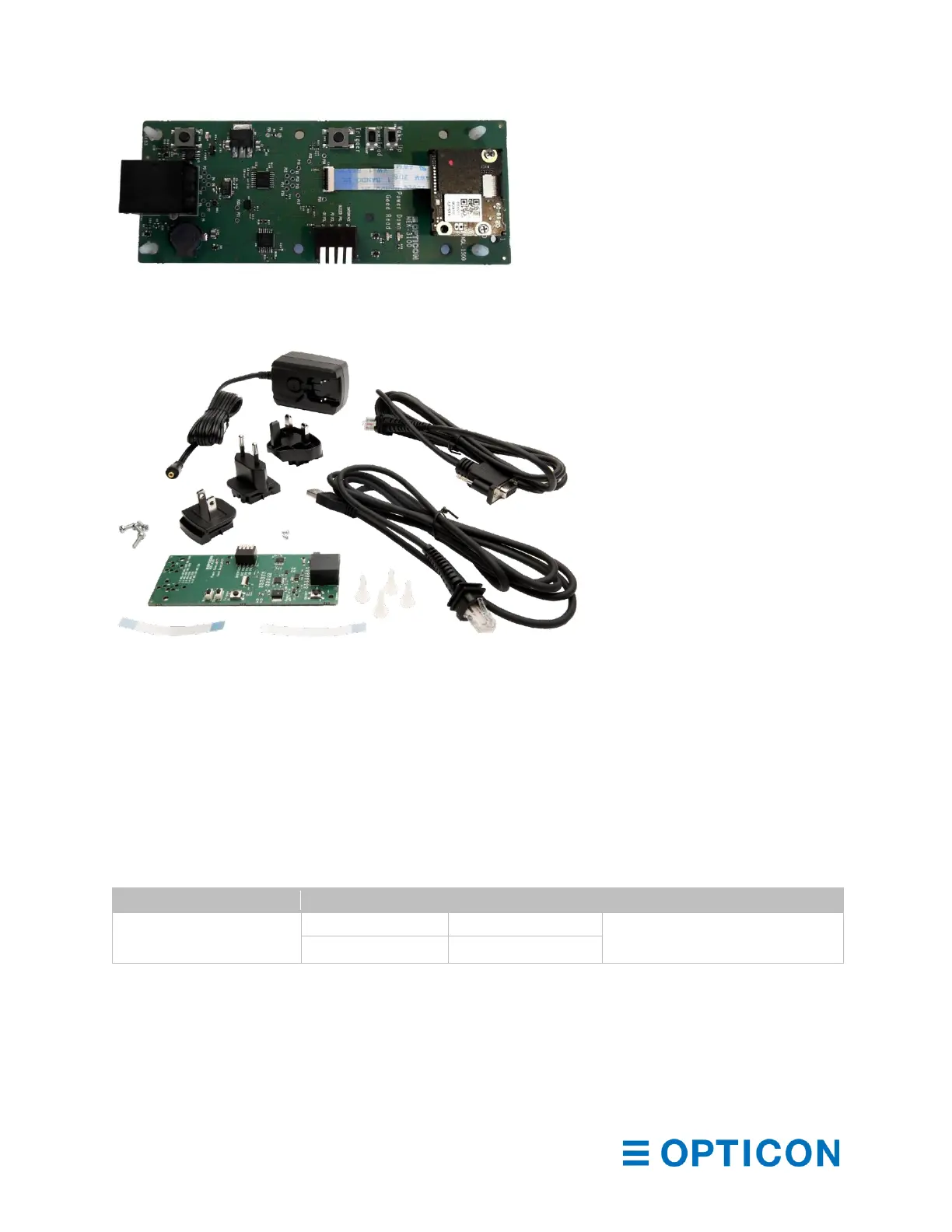

Figure 3: MEK-3100 Evaluation Board
Figure 4: MEK-3100 Evaluation Board Kit
3 Configuration
This chapter explains the scan engine configuration, default setting and saving setting, and
basic commands.
3.1 How to Configure the Scan Engine with Commands
You can configure the scan engine by sending commands through the serial interface or by
reading 1D or 2D menu labels. This section describes the serial commands.
3.1.1 Command Packet
This table defines the command packet from header to terminator.
Command Header
*2
Command ID
*1
Command Terminator
*2
<ESC>
(0x1B)
None
1 - 2 digits (ASCII)
<CR>
(0x0D)
[(0x5B)
3 digits (ASCII)
*1
Except for single digit IDs, you can send multiple command IDs between a single header and terminator.
*2
You can also send a combination of command header <STX>(0x02) and terminator <ETX>(0x03).
