Orbit Reader 20 Plus – User guide Version 1.0
Orbit Research Confidential and Proprietary Information 76
3. Remove the battery door.
4. Carefully unplug the connector. Do not pull the wire. Use the connector
instead.
5. Insert a new battery.
6. Replace the cover and screws.
To dispose of batteries properly, call the recycling center at 1-800-822-8837.
27 Accessories Information

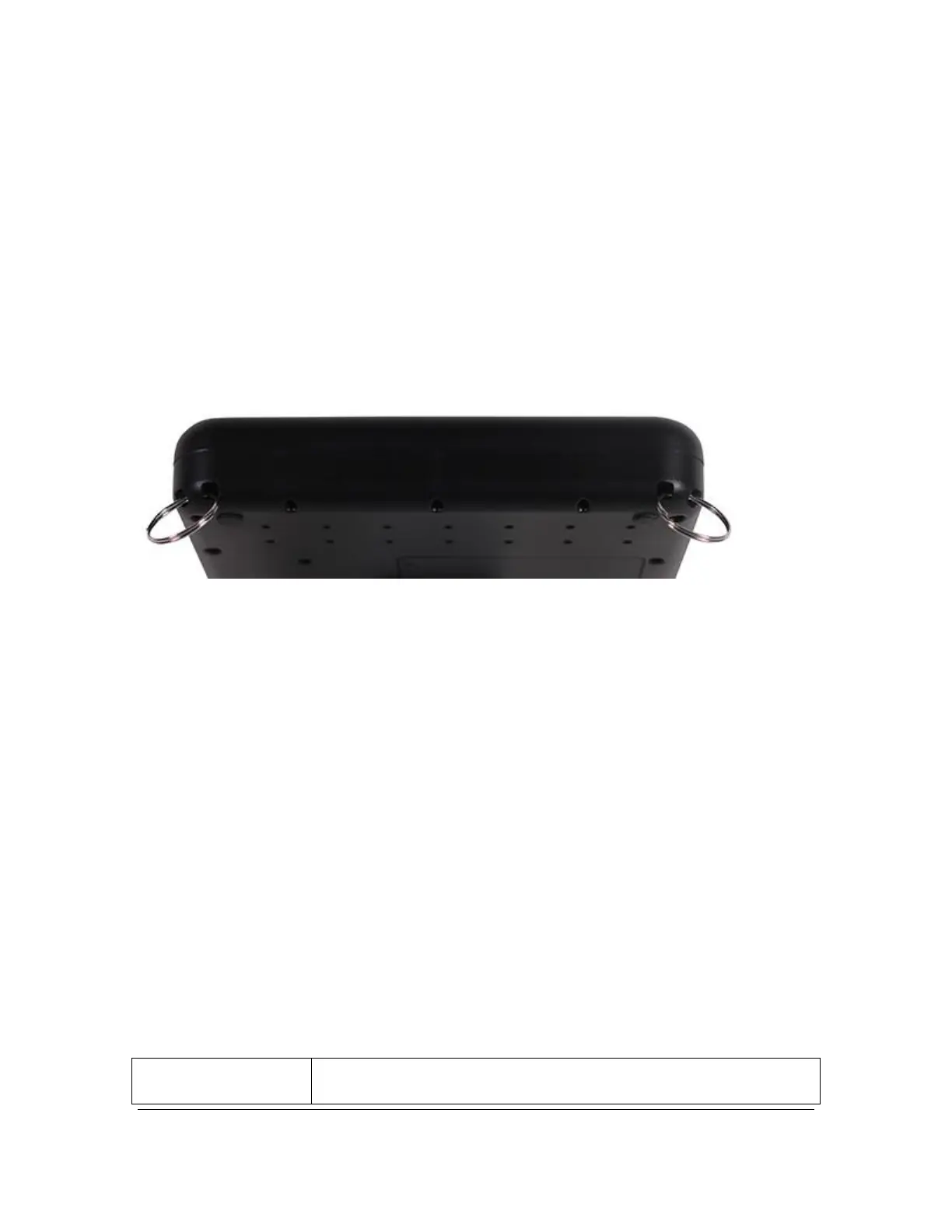

Orbit Reader 20 Plus has two holes on the lower-front corners of the device, one
on each corner. The holes are there to provide a means to attach a strap to the
device, with the use of key rings. The key rings can be 10-40 mm in diameter and
up to 3 mm in thickness.
28 Orbit Reader 20 Plus Cleaning Tips
Due to exposure to natural elements such as dust and oils, the Orbit Reader 20
Plus should be cleaned periodically.
The following are some tips to keep your Orbit Reader 20 Plus clean:
• Cleaning should be performed with the unit switched off and with all pins
in the down position.
• Use a vacuum cleaner with a soft tip attachment to remove dust from the
pin area.
• Use a lint-free cloth to wipe the cells.
• The cloth may be moistened with water.
• Avoid using the following:
- Paper towels, cotton swabs or materials that can release fibers
- Alcohol or ammonia based cleaners
- Canned or compressed air
29 General Specifications
Dimensions
(WxHxD)
6.61 x 1.4 x 4.41 inch (168 x 35.56 x 112 mm)
