Orthofab Tango - Changing Footplate Angle; Changing Position (Depth) of the Composite Footplate

4 SETUP INSTRUCTIONS
inc All rights reserved 14
4.1.2 CHANGING FOOTPLATE ANGLE
1. Loosen screw (B) using a 10 mm key;
2. Adjust the footplate at the needed angle;
3. Tighten screw (B) firmly (tighten at 140 Pounds/inch).

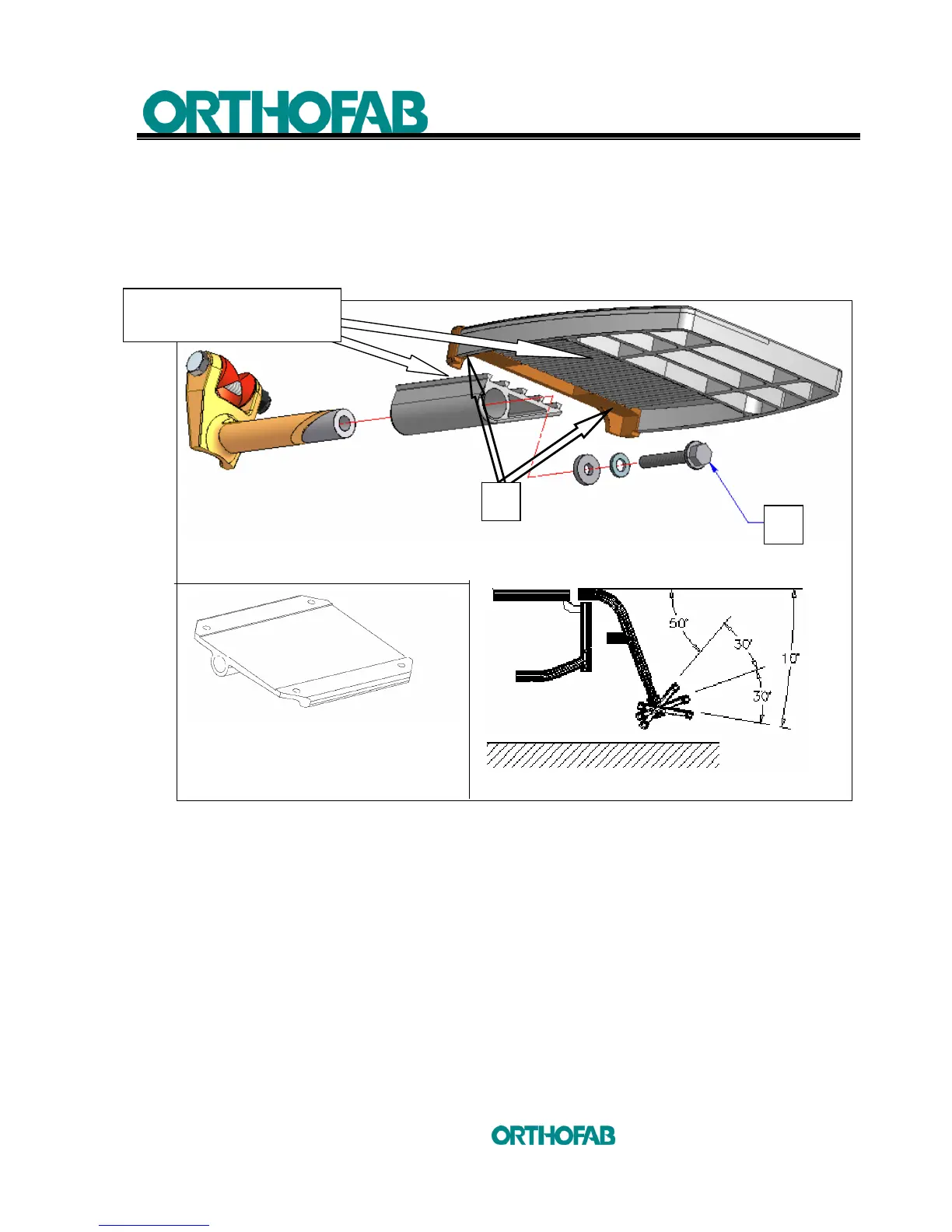

Figure 2 : Changing footplate angle.
4.1.3 CHANGING POSITION (DEPTH) OF THE COMPOSITE FOOTPLATE
1. Remove the two (2) Phillips screws (A) at the end of the footplate (see; figure 2);
2. Pull the footplate to release it from the support;
3. Readjust the footplate at the needed depth;
4. Replace the end part of the footplate with the (2) Phillips screws (A).
Aluminum footplate
B
COMPOSITE FOOTPLATE
INSERTION GROOVE
A
