4 SETUP INSTRUCTIONS

4.6.2 CHANGING SEAT HEIGHT

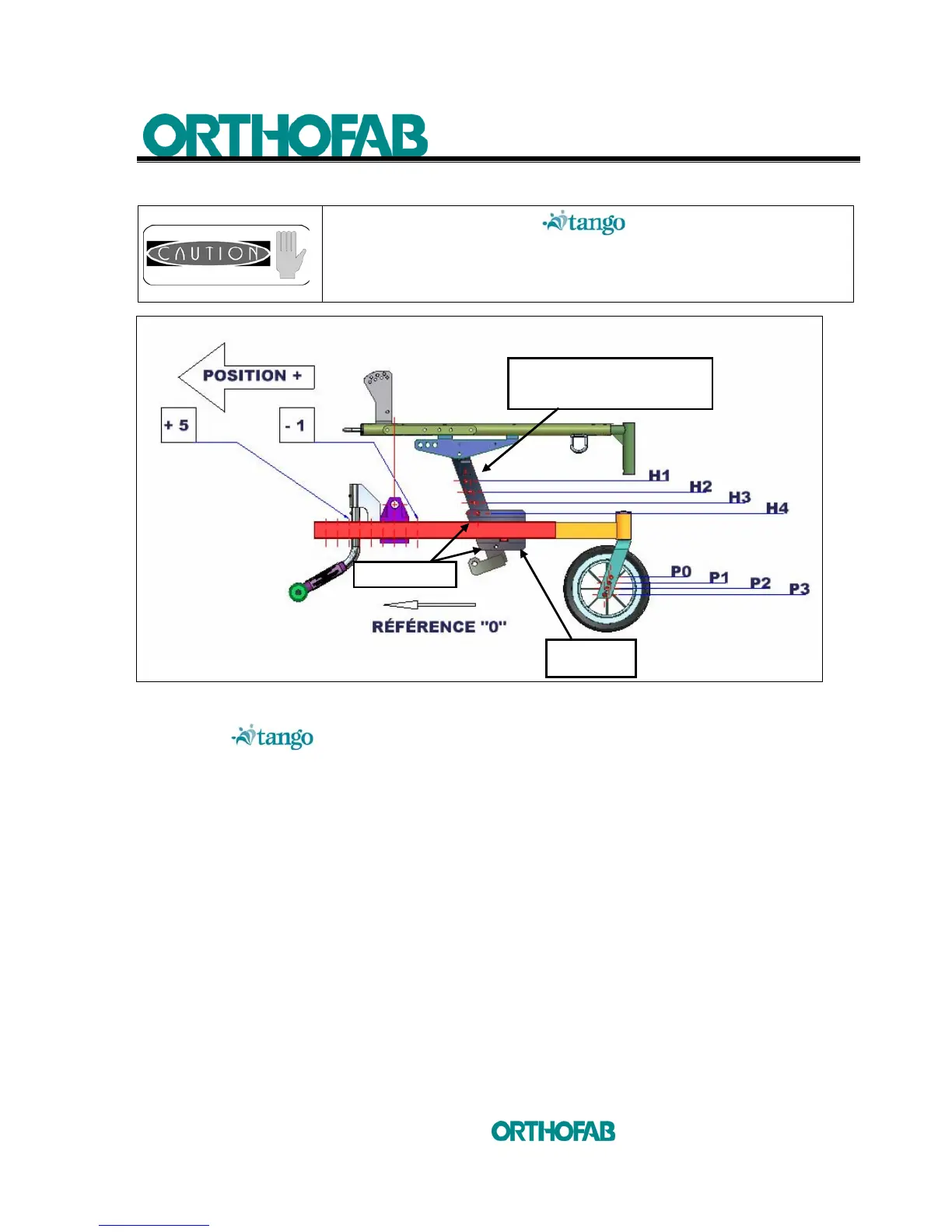

Figure 12 : Seat to floor height adjustment.

The

wheelchair

allows you to change the seat to floor height in two

different ways (see; figure 12 and table 1 and 2) :

1- The choice of wheels; which means the combination of

front and rear wheel diameters. The adjustment on the

fork (P0 to P3) which also allows an adjustment.

2- The seat to floor adjustment on the adjustable height

interface in a range of 3 inches (H1 to H4).

To adjust the height on the adjustable frame interface:

1. Remove the rear wheels either using the quick release axle or remove the

standard threaded axle.

2. Unscrew the (2) bolts (½" wrench) positioned on each side of the frame and

slide the adjustable height interface side by side to the needed positions

(Position H1, H2, H3 or H4) Æ see; figure 12.

3. Replace the screws and tighten the nuts firmly, do not forget the washers.

The adjustments of your

wheelchair must be made

by a health care professional. Inadequate adjustments can

cause wounds and/or damage to the user, the caregiver, the

wheelchair or the environment.

FRAME

ADJUSTABLE HEIGHT

INTERFACE

BOLTS
