4.2 ADJUSTABLE «U» SHAPE ARMREST HEIGHT
4.2.1 TO PROHIBIT REMOVING THE ARMREST
The (A) screw located at the base of the armrest, gives the possibility of installing in a
permanent way the armrest to the wheelchair. This removes the "DETACHABLE" function
of the armrest while preserving the swingaway possibility. Loosen the counter-nut (8 mm
key), and screw (4 mm Allen key) the bolt (A) in the hole and tighten the counter-nut
(see; figure 4-A).

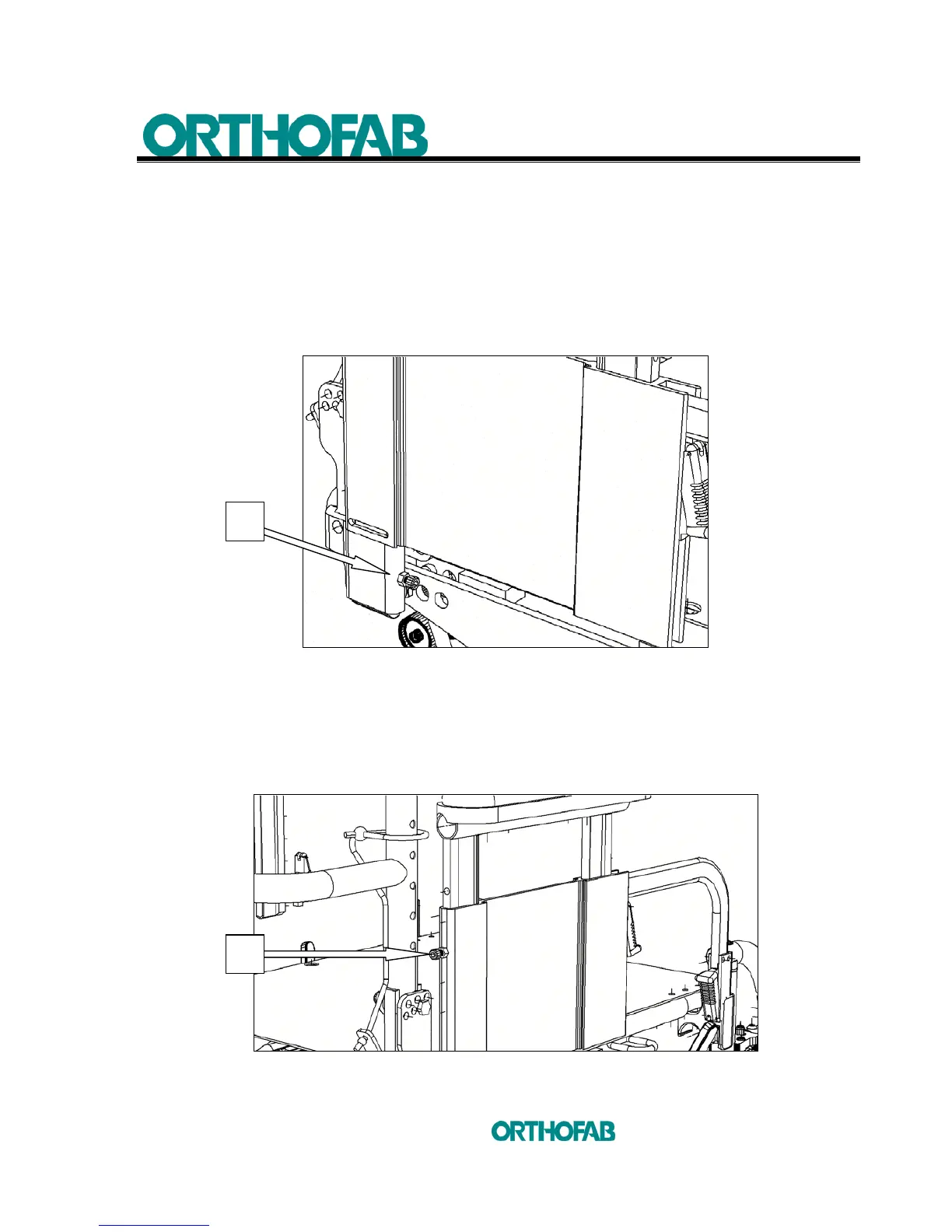

Figure 4-A : To block the possibility of taking off the "U" shape armrest.
4.2.2 TO PROHIBIT ADJUSTMENT IN HEIGHT
The screw (A) located at the back of the armrest gives the possibility of prohibiting
the adjustment in height of the armrest. To prohibit the height adjustment, loosen
the counter-nut (8 mm key), screw (4 mm Allen key) the bolt (A) in the hole and
tighten the counter-nut (see; figure 4-B).
Figure 4-B : To block the height adjustment of the "U" shape armrest.
