4.6.3 MAXIMUM TILT ANGLE ADJUSTMENT
In some cases, it will be necessary to limit the tilt angle of the seat. Two (2) devices
make it possible to carry out this function (see; figure 14).
a) Limitation of the posterior angle. The tilt allows an angle up to 45°:
1. Loosen (A) screw and (B) nut on the (E) collar (using (2) 7/16" wrench);
2. Bring the tilt mechanism at the needed position;
3. Lower the (E) collar until it touches the gas cylinder;
4. Tighten the (A) screw and (B) nut on the (E) collar, do not forget the (D) washer.
b) Limitation of the anterior angle. The tilt mechanism can give you an angle from -5°
to +45°. The next adjustment gives you the ability to get back to a previous angle
position :
1. Loosen the (C) screw on the (G) open collar (using a 1/2" wrench);
2. Bring the tilt mechanism at the needed position;
3. Make sure to insert the limitation angle tubing (F) and the open collar (G) in the
limitation bar (H). The system must be engaged (see; figure 14). The open collar
(G) must be lowered to make contact with the bottom part of the limitation bar (H);
4. Tighten the (C) screw on the (G) open collar firmly to block the limitation
mechanism.
NOTE: The limitation angle tubing (F) can be retracted in order to be able to return to a
horizontal position or anterior -5°.

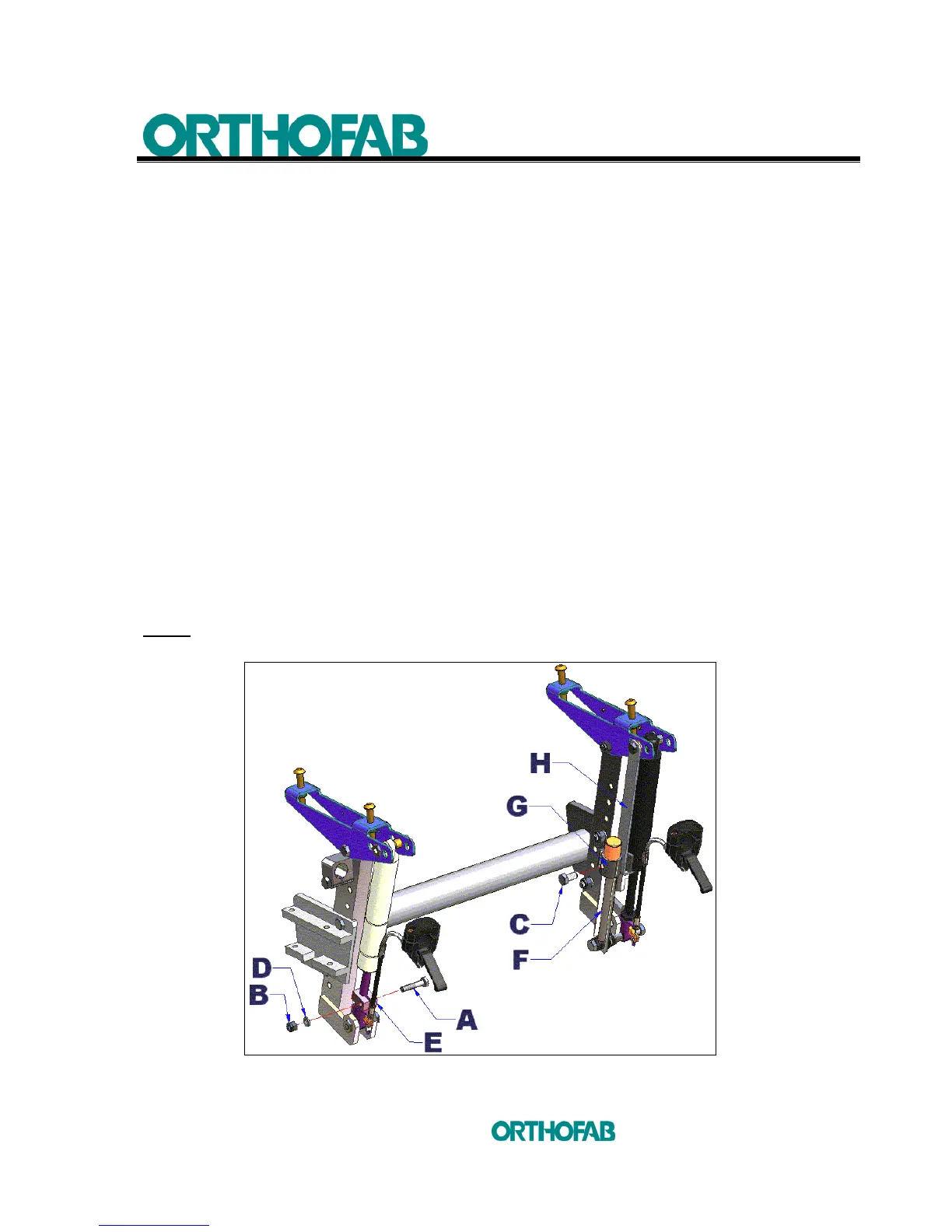

Figure 14 : Maximum tilt angle limitation.
