Orthofab Tango - Seat with Motorized Tilt Mechanism; Dismantling before Installation; Upper Anchor Installation

4 SETUP INSTRUCTIONS
inc All rights reserved 33
4.7 SEAT WITH MOTORIZED TILT MECHANISM
4.7.1 DISMANTLING BEFORE INSTALLATION
1. Apply parking brakes to immobilize the wheelchair.
2. Remove the pneumatic actuator release handles (see; figure 15).
3. Remove all the assembly of the right and left actuator (see; figure 14).
4. To make easier the motorized tilt mechanism assembly, it is recommended to
remove the seat system from the base.

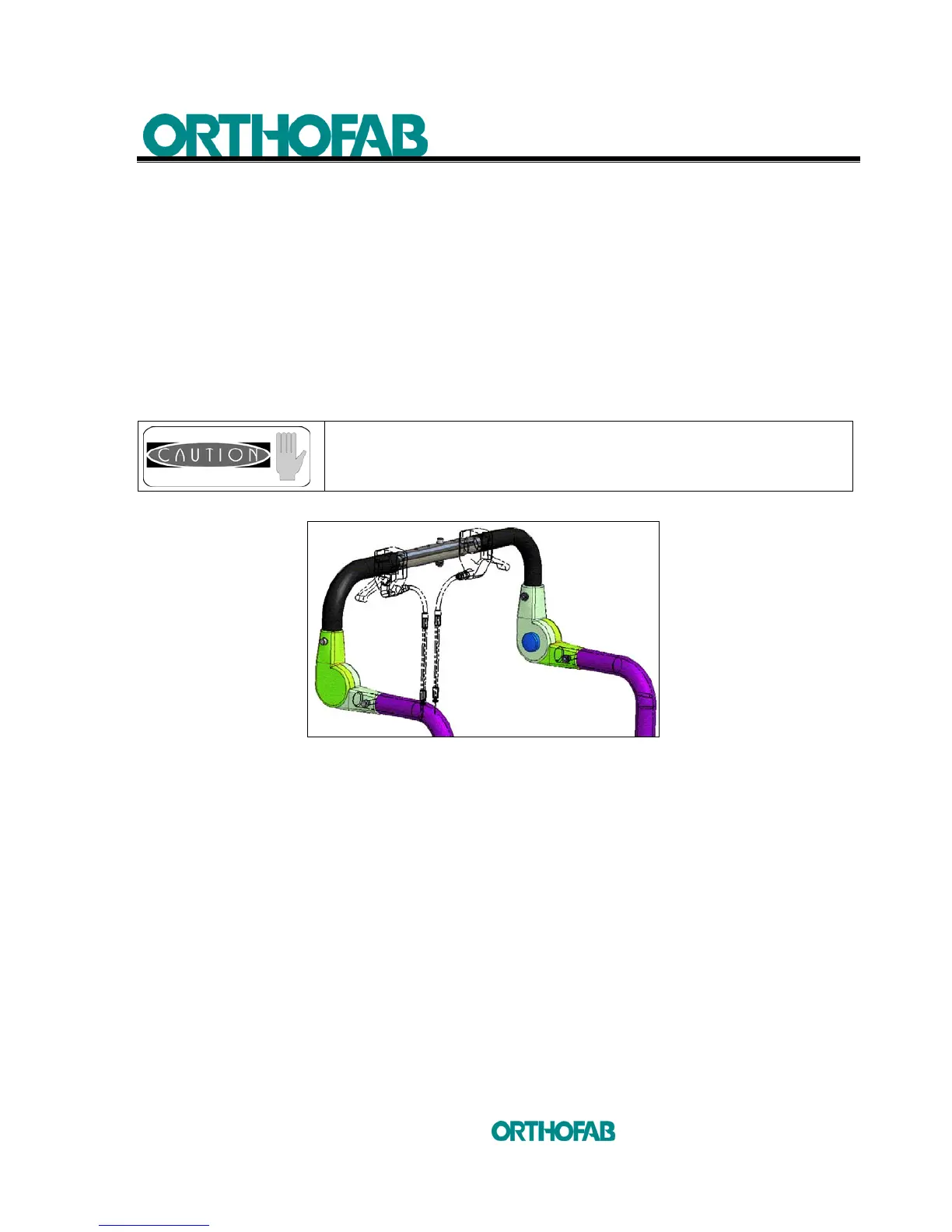

Figure 15 : Remove the pneumatic actuator release handles.
4.7.2 UPPER ANCHOR INSTALLATION
1. Put the upper anchor (D) on the rear corner of the seat interface (C)
(see; figure 16-A).
2. Slide the (B) axles in the rear holes of the seat interfaces (C).
3. Align the (B) axles holes with the threaded ones on the upper anchor (D) centre this
assembly on the wheelchair base and tighten the (A) screws firmly, using a 7/16"
key (see; figure 16-B).
4. Make sure that both side of the upper anchor (D) will be solidly fixed to the seat
interfaces (C).
The seat with motorized tilt mechanism can only be assembled
on a mid-wheel TANGO configuration.
