4 SETUP INSTRUCTIONS

4.5.4 STABILIZER BAR WITH HEADREST SUPPORT AND ADJUSTABLE ANGLE PUSH HANDLE

1. To install a cross bar with a headrest support; unscrew and remove on each side

the (C) screw and the (E) nut, using a 5/32" Allen key and a 3/8" wrench, make

sure to keep the (2) (D) washers.

2. Separate the backrest handles from the adjustable angle push handle.

3. Remove both diameter reduction bushing inside the arm of the adjustable angle

push handle and replace them with the (2) cross bar bushing (see; figure 10).

4. Cut (1 ½" approximately) off the black rubber on the backrest post structure

(see; figure 10).

5. Reinstall the backrest post inside the cross bar bushing and once the hole of the

backrest post and the cross bar bushing will be aligned, tighten the (H) screws

and the (G) nuts and for the adjustable angle push handle, screw back the (C)

screws, (E) nuts, don't forget to put back the (D) washers.

6. Fix the cross bar with headrest support under the cross bar bushing using (A)

screws, (B) washers and (F) nuts, using a 7/16” wrench and a 5/32" Allen key.

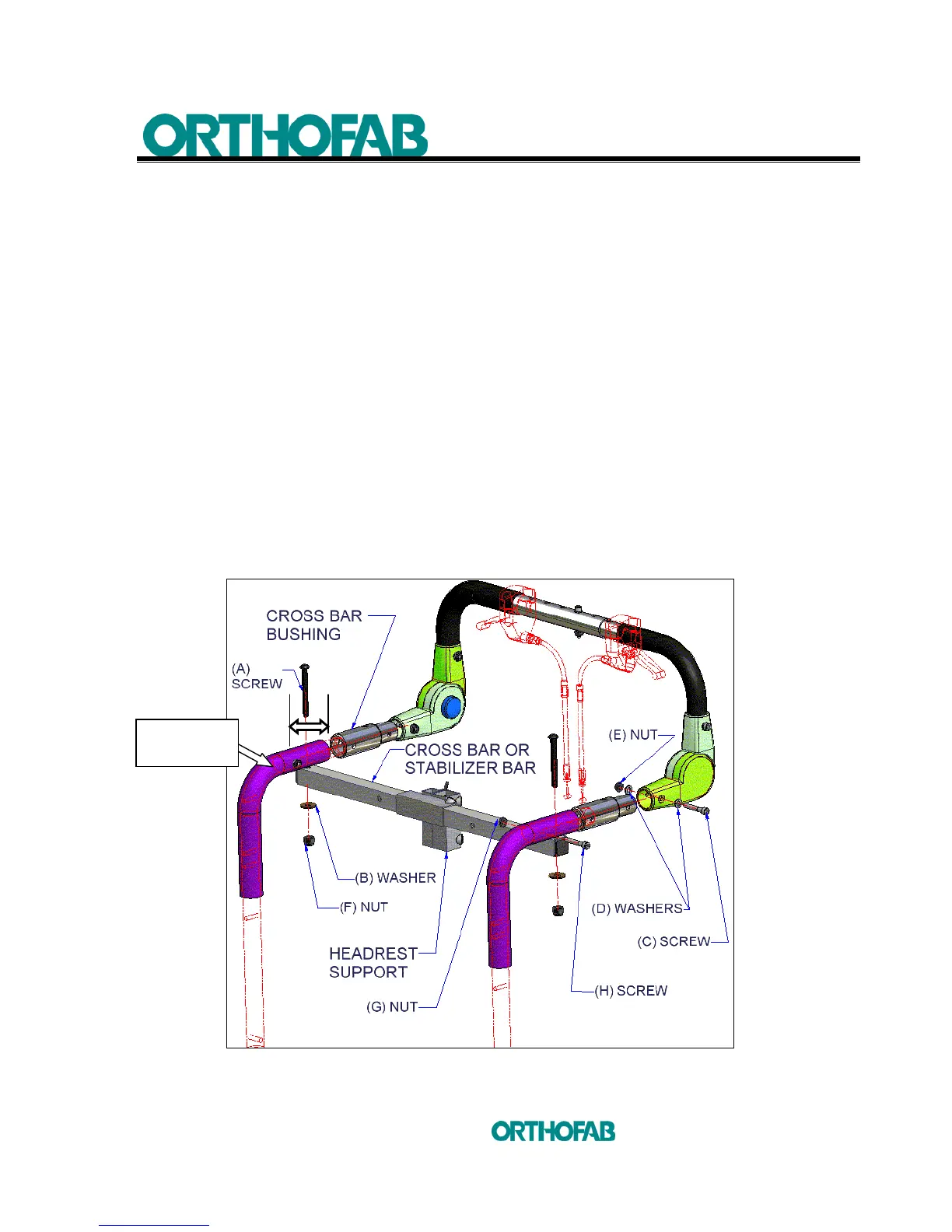

Figure 10 : Stabilizer bar with headrest support and adjustable angle push handle.

1 1/2"

BACKREST

POST
