4 SETUP INSTRUCTIONS

4.8.2 CHANGING THE TYPES OF WHEELS AND HEIGHT (FRONT AND REAR)

1. For a standard propulsion, remove the (A) screw (1/2" wrench) and (B) nut

which maintain the wheel to the fork (see; figure 23);

2. For a mid-wheel propulsion, remove (A) screw (using two (2), 1/2" wrench)

and (B) nut which maintain the wheel to the fork (see; figure 23);

3. Remove the wheels from the fork;

4. Remove the spacers and washers from the wheel assembly;

5. Select the wheel size and put the screws in the chosen hole (see; tables

section 4.6.2);

6. Invert the procedure to reassemble.

NOTE : For the seat to floor height choices ; see section 4.6.2 tables.

STANDARD PROPULSION CONFIGURATION MID-WHEEL PROPULSION CONFIGURATION

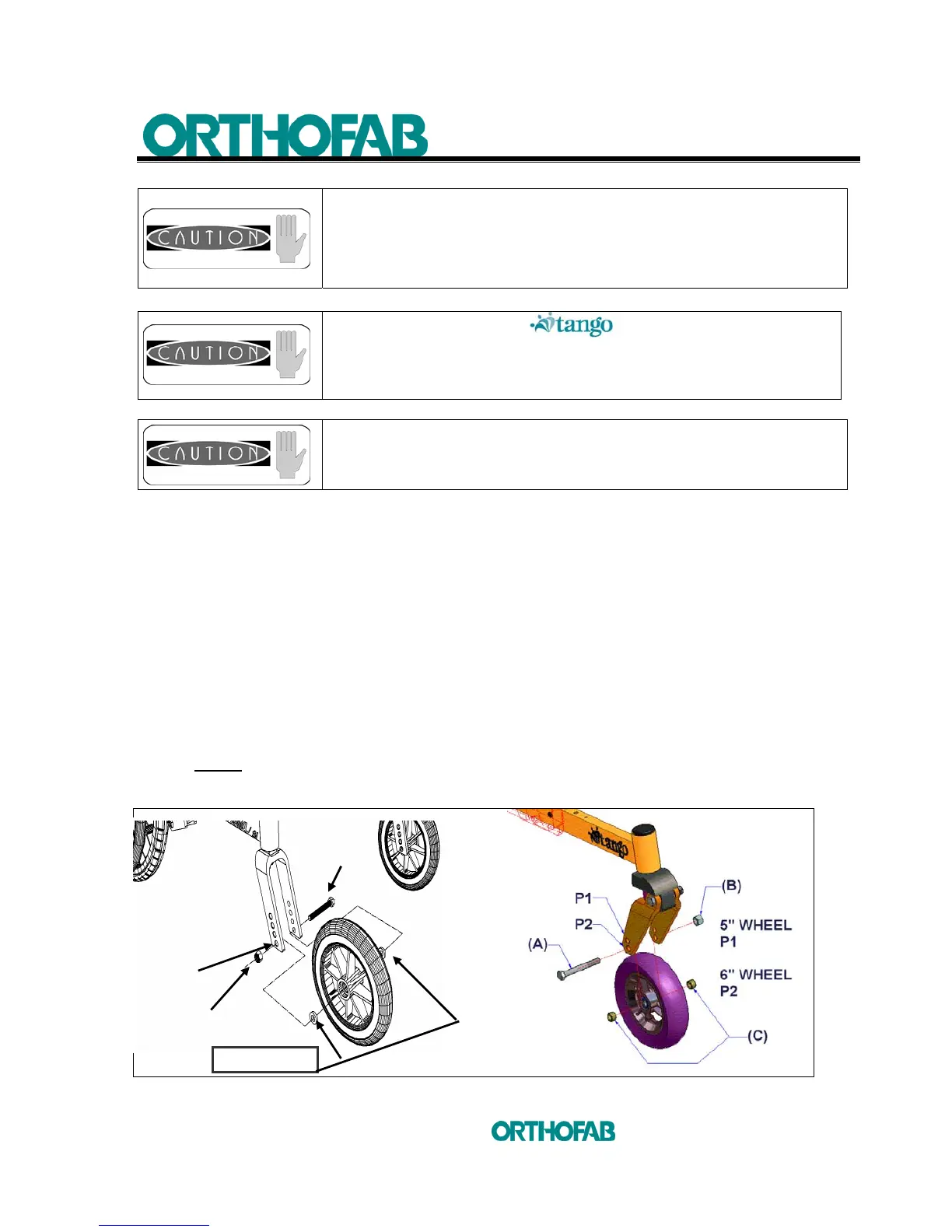

Figure 23: To change front (rear) wheels model and height.

The front wheel position is adjusted at the factory as per the

seat depth chosen. There is a risk of instability when the seat

is farther ahead than the front wheels. In a mid-wheel

propulsion configuration rear forks positions don't have to be

adjusted.

The adjustments of your wheelchair must be made

by a health care professional. Inadequate adjustments can

cause wounds and/or damage to the user, the caregiver, the

wheelchair or the environment.

With a mid-wheel configuration you always have to change the

front, central and rear wheels at the same time.

SPACERS

(

)

(B)

(A)
