4.7.7 TILT MECHANISM POSITIONING SYSTEM ADJUSTMENT
NOTE: The motorized tilt mechanism is equipped with 3 electromagnetic cursors which
are easily adjustable. These switches and their connectors are well identified with
stickers as shown below (see; figure 21).

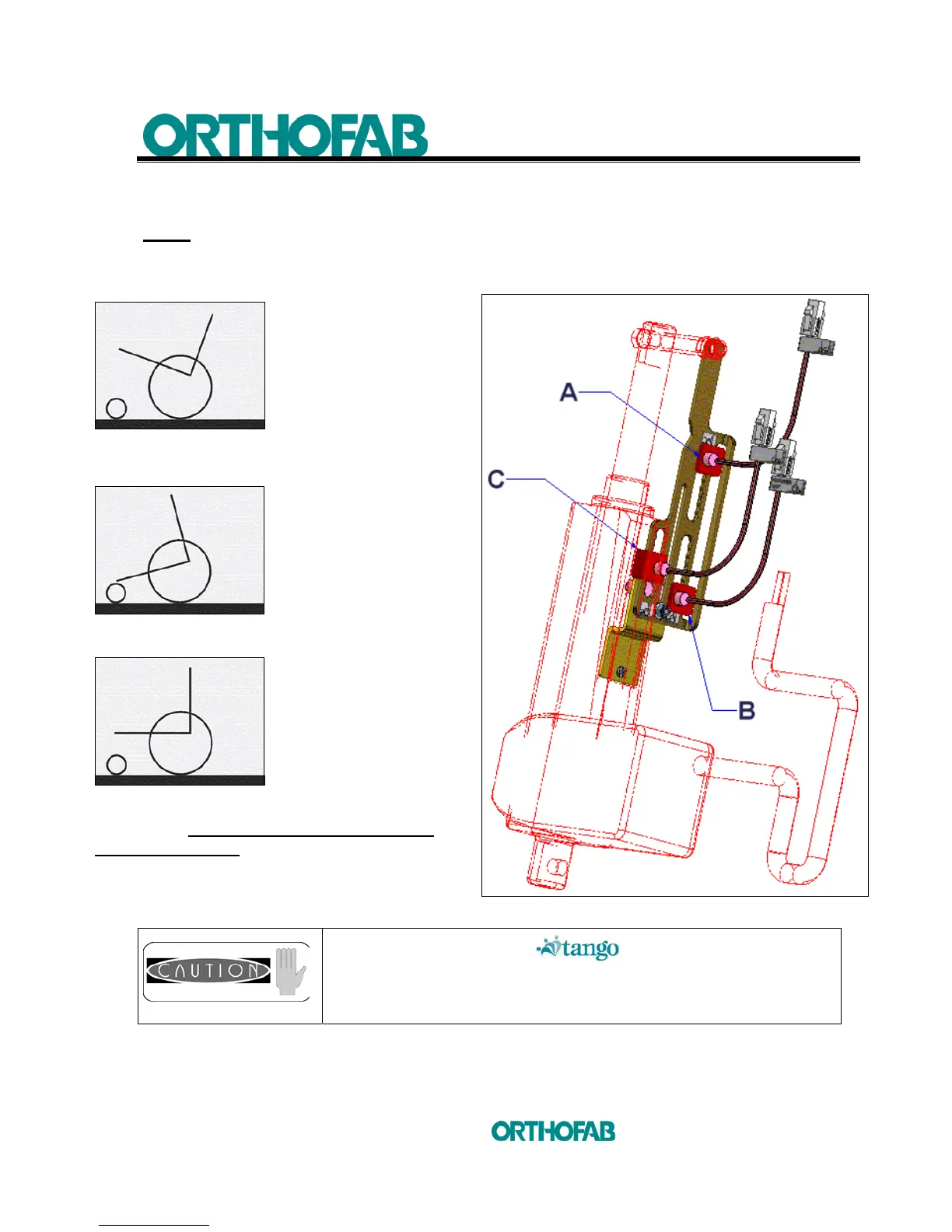

Figure 21 : Tilt mechanism positioning system adjustment.
The adjustments of your wheelchair must be made
by a health care professional. Inadequate adjustments can
cause wounds and/or damage to the user, the caregiver, the
wheelchair or the environment.
The (A) switch limits the posterior tilt action.
The (C) switch activate a green LED on the
control box, this light will indicate the ideal tilt
position to the user.
The (B) switch limits the anterior tilt action.
