4 SETUP INSTRUCTIONS

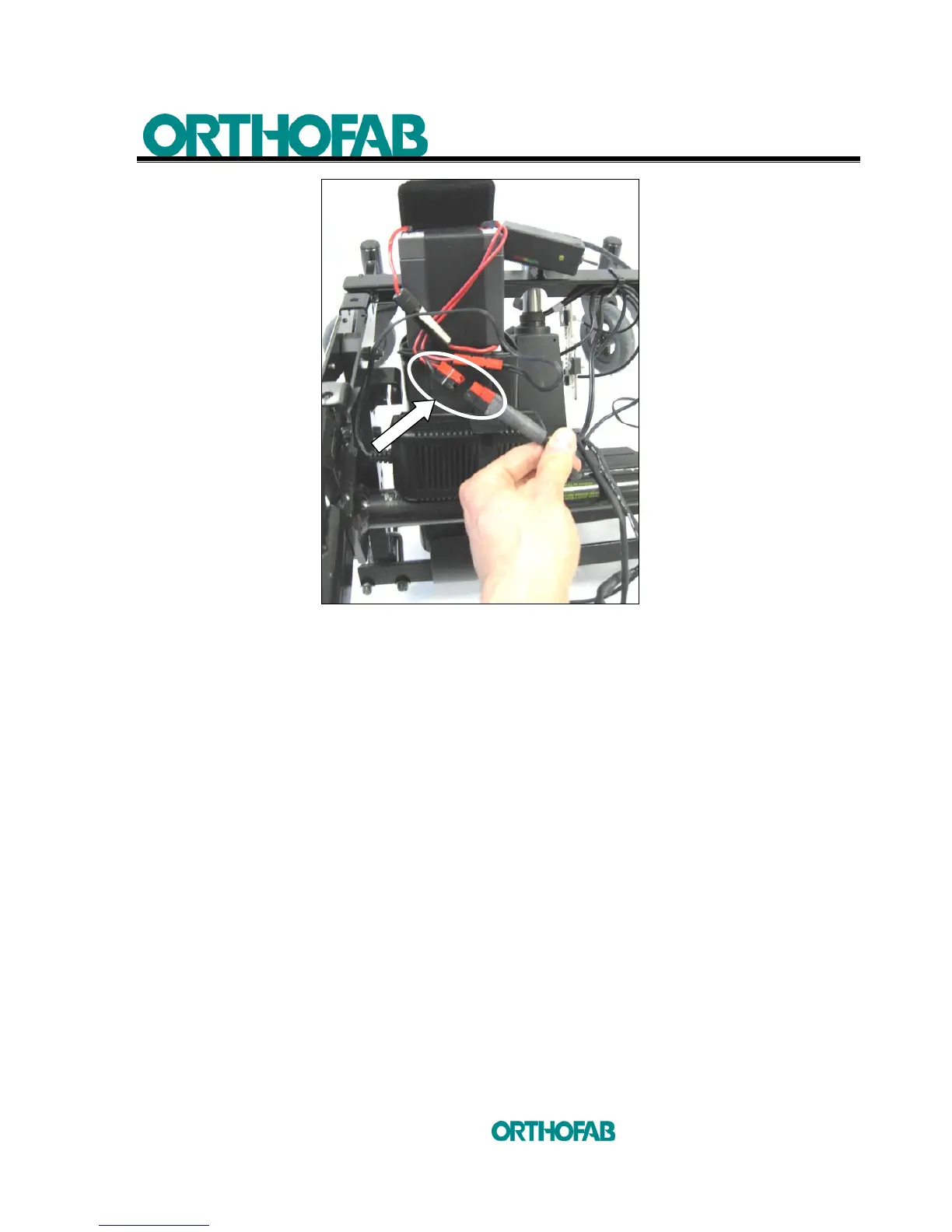

Figure 18-F : Red and black connectors.

4.7.5 CONTROL BOX AND ITS SUPPORT INSTALLATION

1. Choose the side of assembly (right or left).

2. Remove the (A) screw and the (B) washer which maintains the front part of the

armrest upholstery (see; figure 19).

3. Insert the control box support (C) in the armrest tubing and align the hole on the

support (C) in line with the one on the armrest tubing.

4. Replace the (A) screw and the (B) washer and tighten firmly.

5. Put in place the tilt mechanism control box (D), install a “Velcro” strip on the

contact side of the control box and fix the control box on the support (C) which has

already “Velcro” strip apply on both side. The control box must be installed on the

outermost side of the support (see; figure 19).

6. Pass the tilt mechanism control box cable on the inner side of the armrest.
