Orthofab Tango - Lower Anchor Installation

4 SETUP INSTRUCTIONS
inc All rights reserved 34

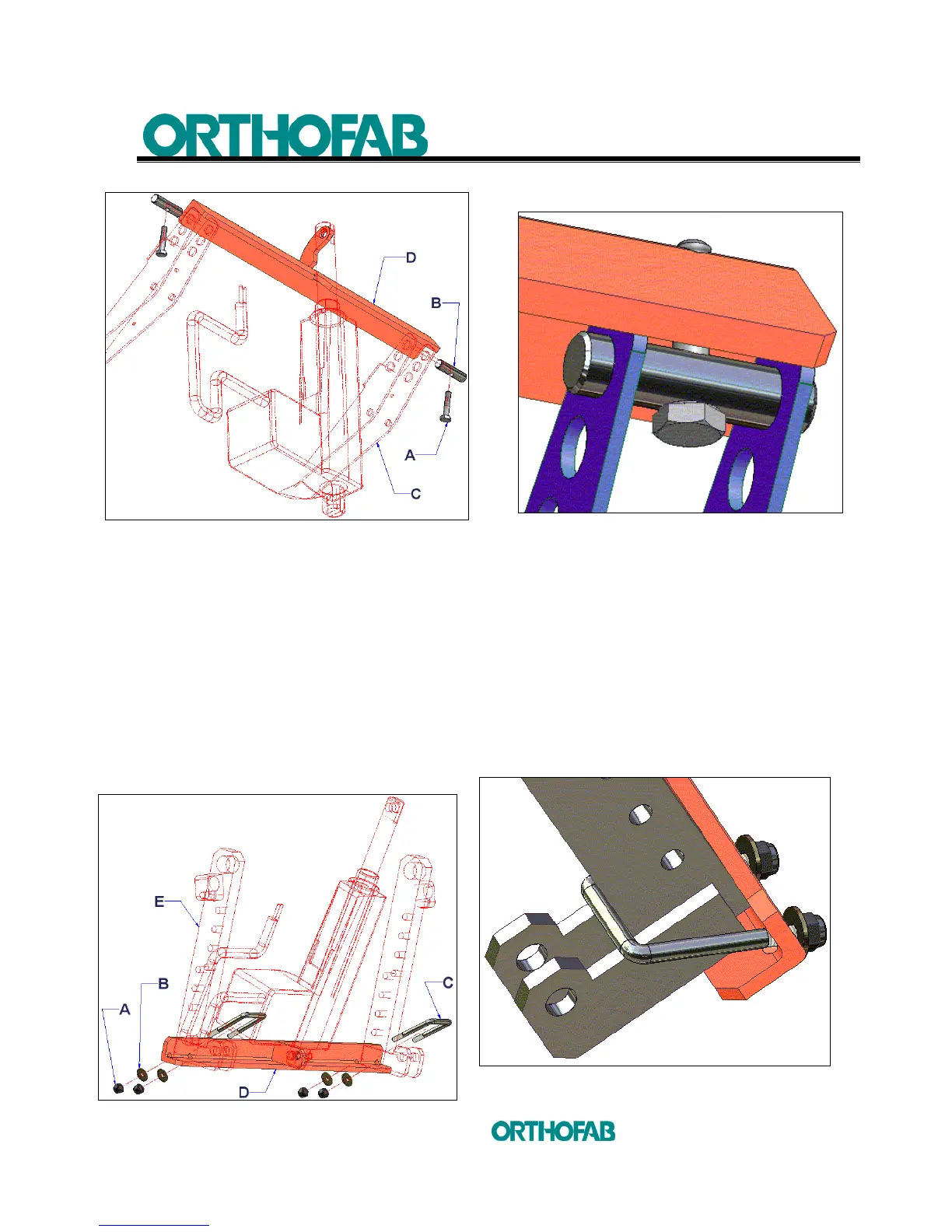

Figure 16-A : Upper anchor installation.
4.7.3 LOWER ANCHOR INSTALLATION
1. Place the lower anchor (D) on the front corner of the height adjustment interfaces
(E) (see; figure 17-A).
2. Insert the "U" shape bolt (C) over the height adjustment interfaces (E) and make
the threaded parts pass through the holes of the lower anchor (D).
3. Install the (B) washers and the (A) nuts and tighten them firmly, using a 7/16" key
(see; figure 17-B).
4. Make sure that both side of the lower anchor (D) will be solidly fixed to the height
adjustment interfaces (E).
Figure 17-A : Lower anchor installation.
Figure 16-B : Final assembly.
Figure 17-B : Final assembly.
