4 SETUP INSTRUCTIONS

4.10.3 TO CHANGE THE ANGLE OF THE BRAKE LEVER (pushing brake type only)

NOTE

: The angle of the brake lever can be adjusted.

To do it :

1. Unscrew (B) screw, using a 3 mm Allen key and carry out a rotation of the lever

until the needed position is reached ;

2. Replace (B) screw and tighten firmly.

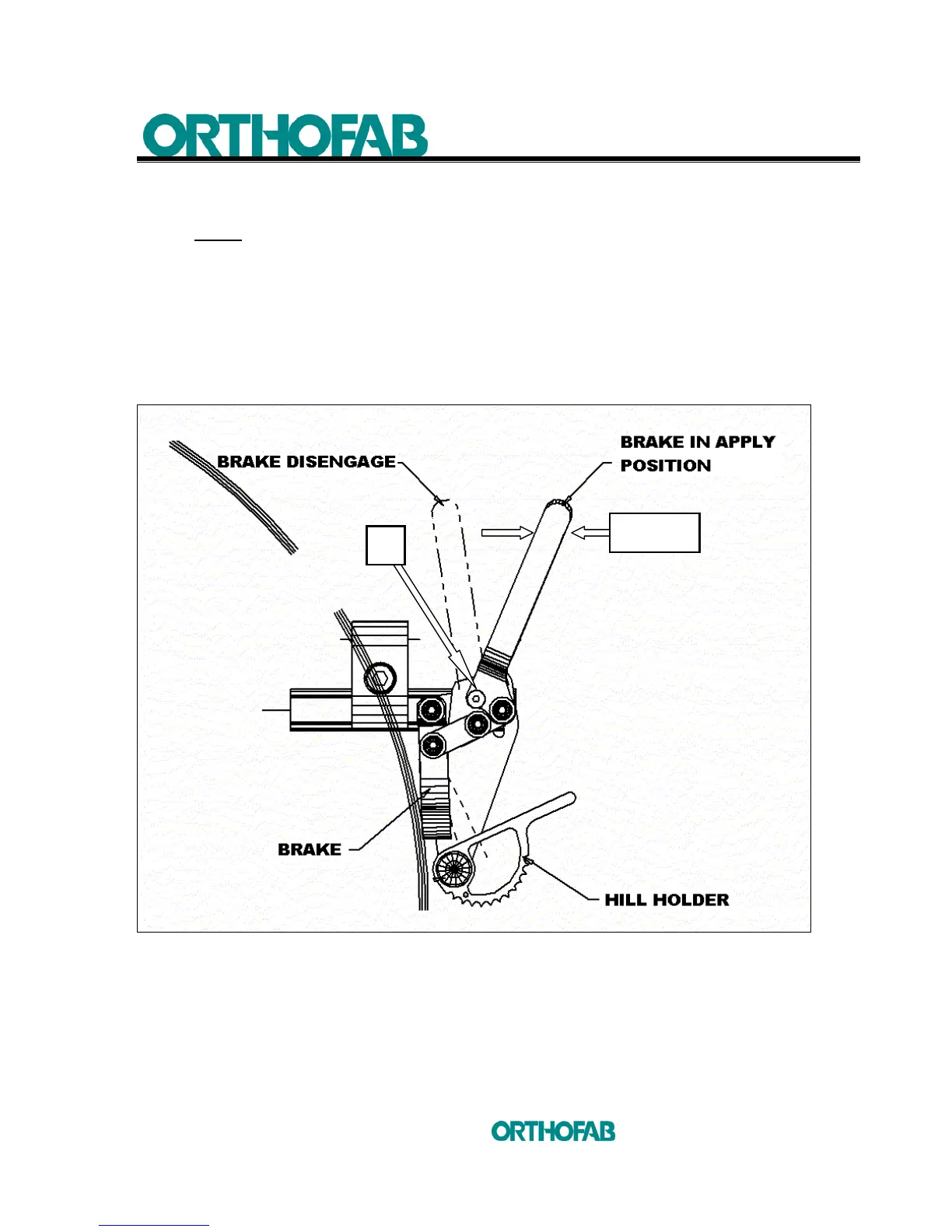

Figure 34 : To change the angle of the brake lever.

LEVER
