4 SETUP INSTRUCTIONS

5- Repeat this procedure for the other side ;

6- Replace in position the rear wheels on the wheelchair;

7- Engage the tilt mechanism and carry out a stability test on the

wheelchair;

8- Repeat this entire procedure (1 to 7) until the wheelchair is stable.

4.9.3 CHANGING MID-WHEEL AXLE POSITION

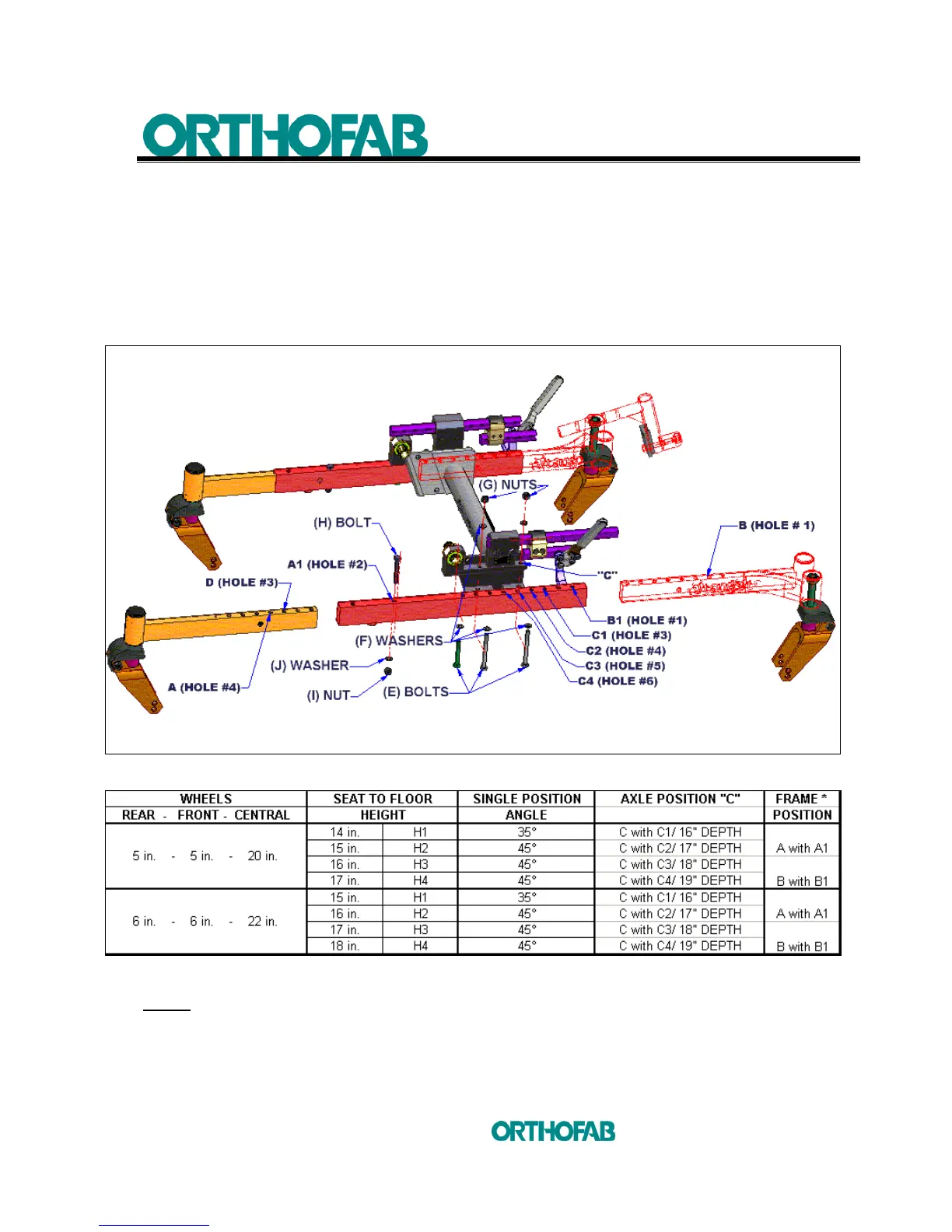

Figure 27-B: Changing mid-wheel axle position.

Table 4: Changing mid-wheel axle position.

NOTE: If you have this configuration: 6 inches front and rear wheels, 22 inches middle

wheel and 19 inches depth. You will have to change rear wheels position as per:

with A1

(see; figure 27-B above, to identify the position).
