4 SETUP INSTRUCTIONS
inc All rights reserved
46

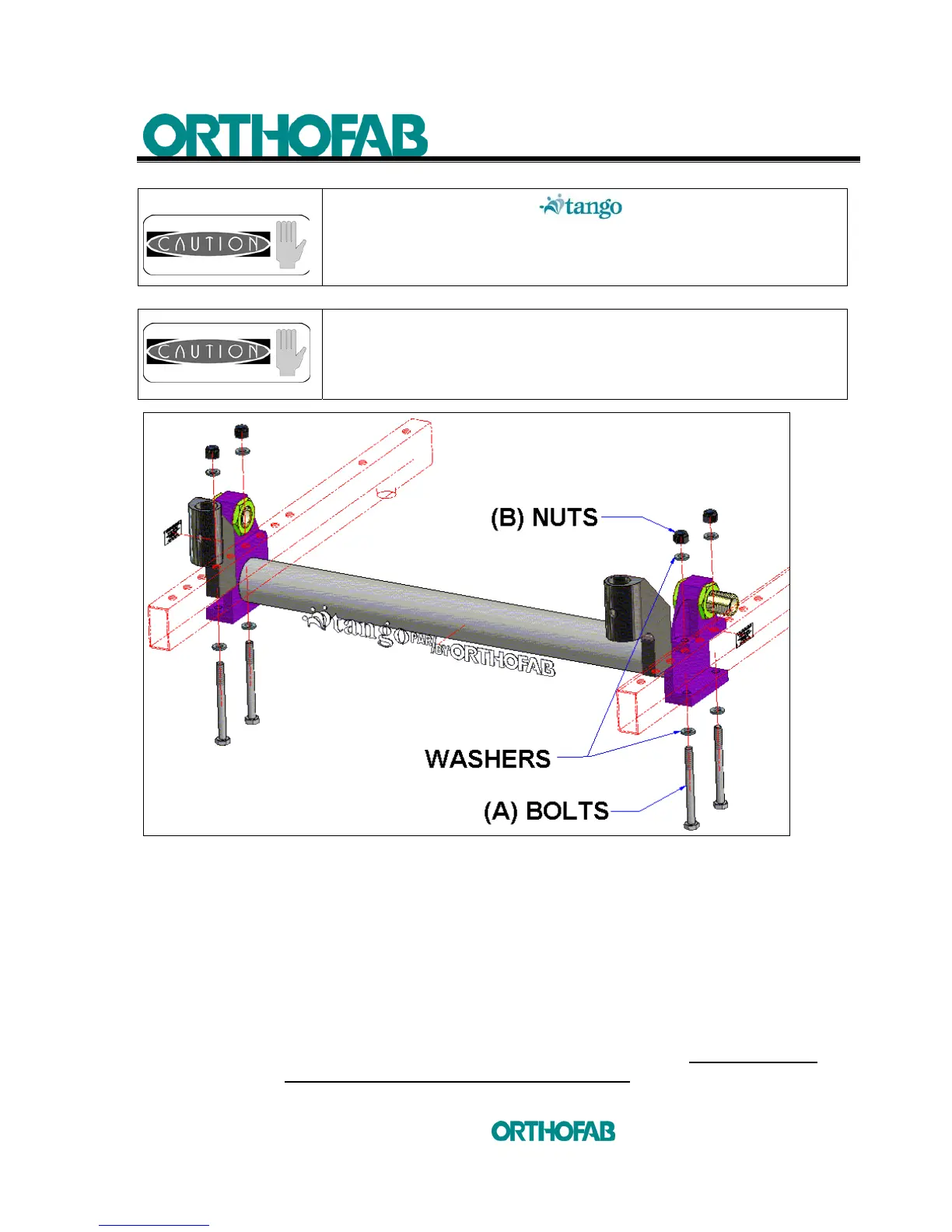

Figure 27-A : Changing rear wheel axle position.
To change the position of the rear wheels (see; figure 27-A) :
1- Remove the rear wheels from the wheelchair. See section 5.6.1;
2- Remove the (A) screws (7/16" key) and (B) nuts which maintains the
housing assembly of the rear wheel axle;
3- Replace the housing assembly for the rear wheel at the needed
position on the frame. Consult the tilt angle table (section; 4.9.2) to
identify the new position;
4- Install the (A) screws and (B) nuts and tighten them to a torque of 25
pounds/inch. To do this, use a torque wrench;
The adjustments of your wheelchair must be made
by a health care professional. Inadequate adjustments can
cause wounds and/or damage to the user, the caregiver, the
wheelchair or the environment.
Check the wheelchair stability before delivery to the user.
