4 SETUP INSTRUCTIONS
inc All rights reserved
56
4.10.2 TO CHANGE THE BRAKE LEVERS
You have the choice of two (2) types of brake extensions that can be assembled :
a) RETRACTABLE EXTENSION (see; figure 33-A) :
1. Install the extension guides (E) on each side of the brake lever (A) ;
2. Place the (D) spring include with (F) extension, in the (B) hole ;
3. Insert the (C) dowel pin in the (B) hole by compressing the (D) spring ;
4. While retaining the dowel pin (C) inside the (B) hole, slide the wheel brake
extension (F) on the brake lever (A). Caution
: This assembly can be difficult to
do the first time, make sure you don't lose dowel pin (C).

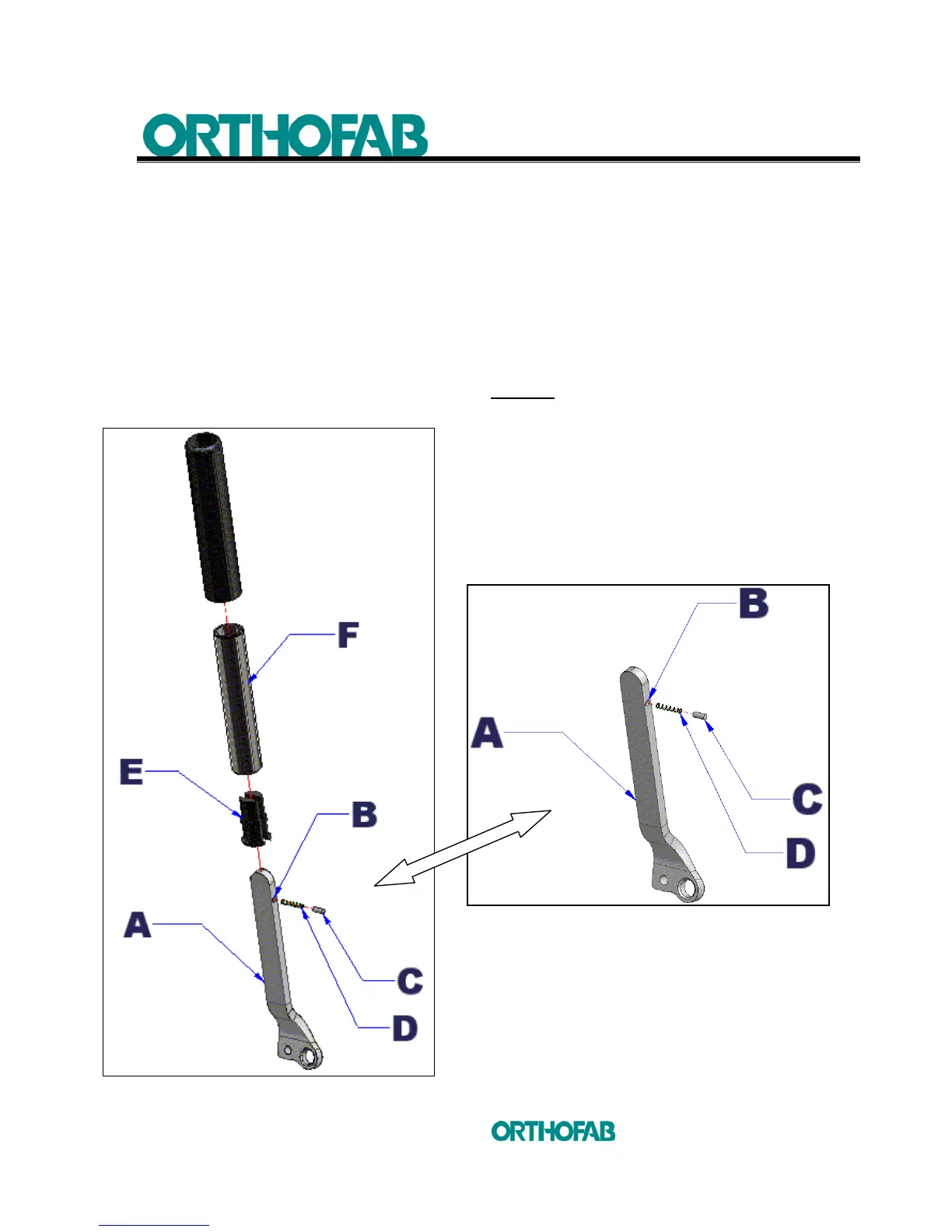

Figure 33-A : Retractable extension installation.
