b) FIXED LENGTH EXTENSION (see; figure 33-B) :
1. Install the extension guides (C) on each side of the brake lever (A) ;
2. Insert the extension lever (E) on the brake lever (A) ;
3. Place the (D) screws in line with the (B) holes ;
NOTE
: If you have to drill a hole on the opposite side of the (B) hole, use a 7/64" drill.
4. Tighten (D) screws.

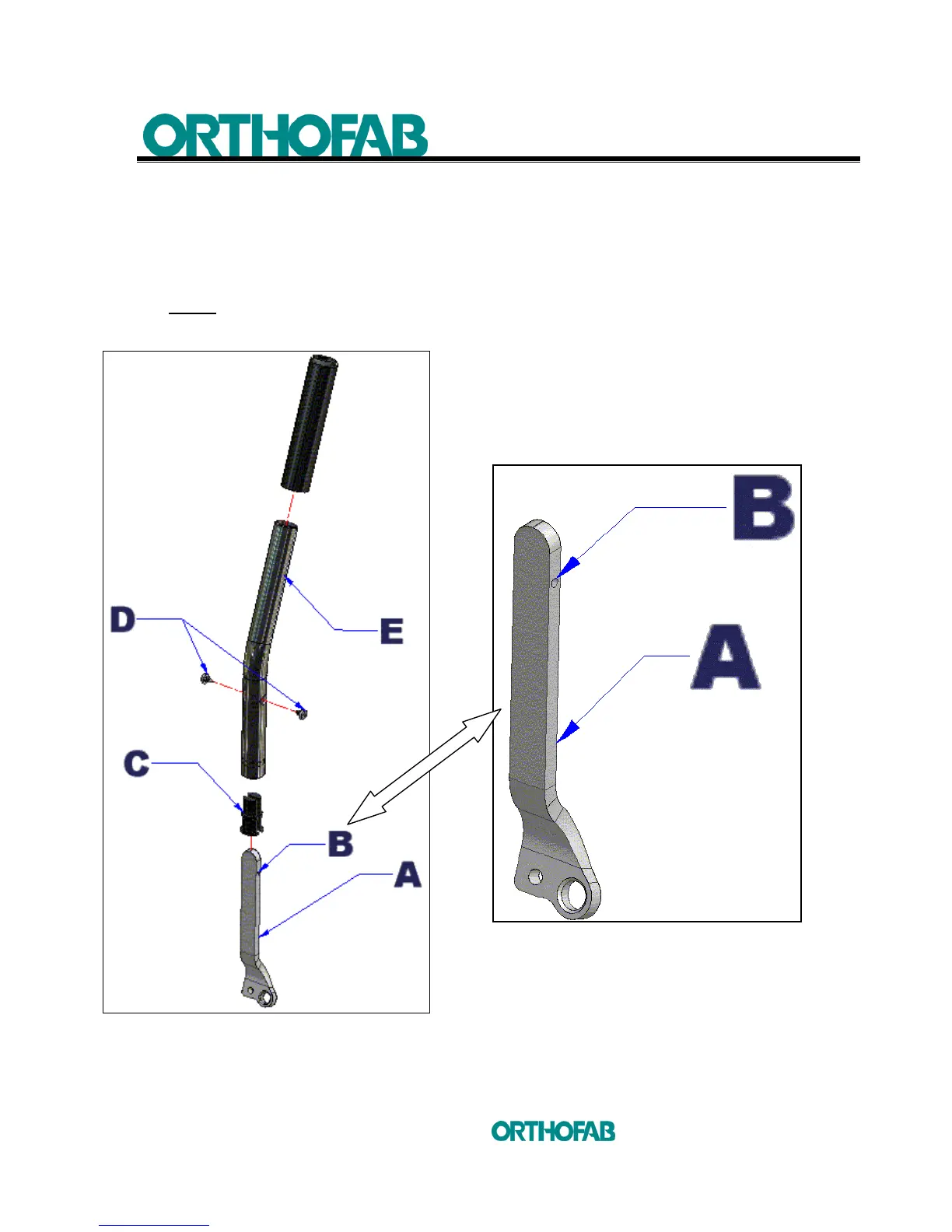

Figure 33-B : Fixed length extension installation.
