4 SETUP INSTRUCTIONS
inc All rights reserved
31
MID-WHEEL PROPULSION CONFIGURATION WITH SEAT DEPTH 16" to 19"
POSSIBLE CHOICES OF SEAT TO FLOOR HEIGHT, WHEELS AND TILT ANGLES

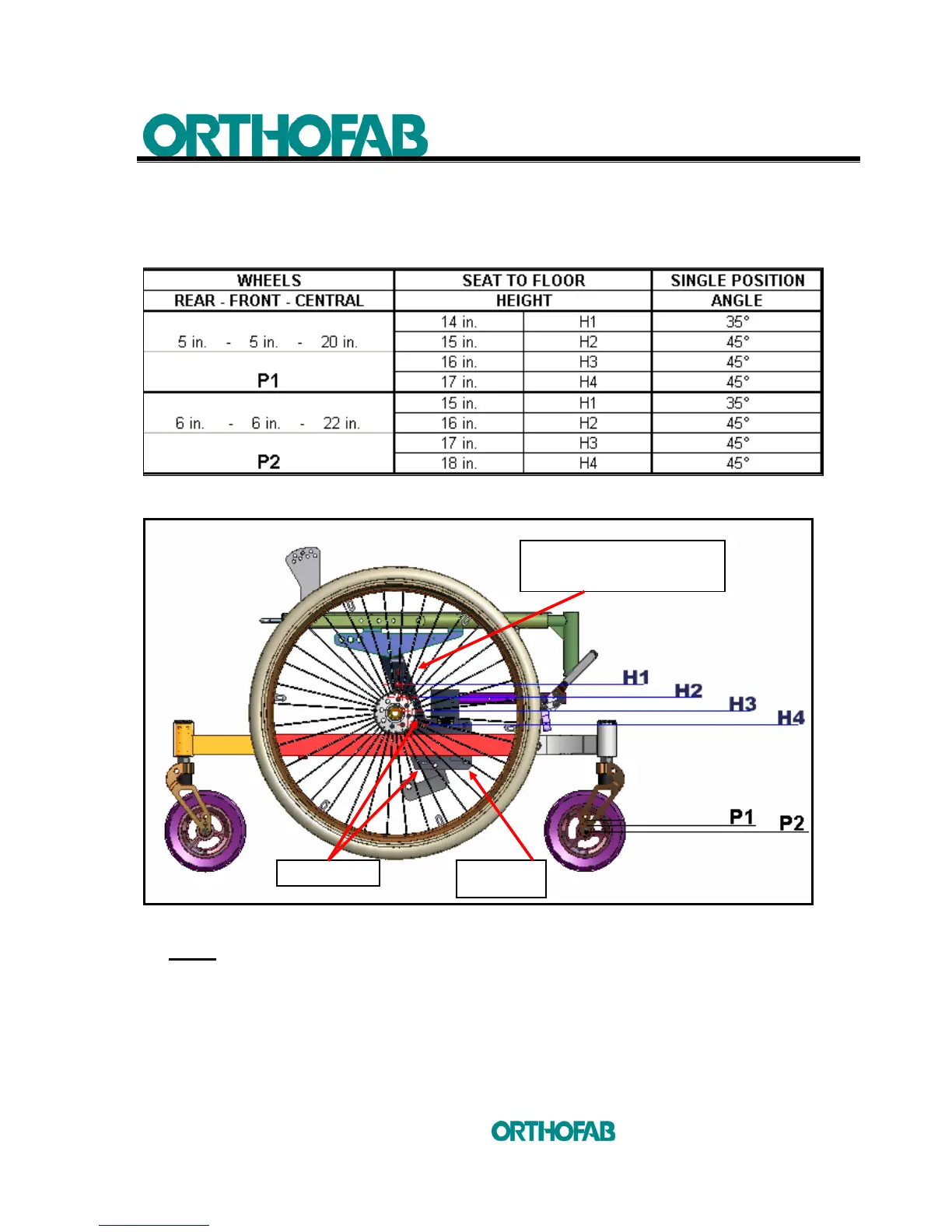

Table 3: Mid-wheel propulsion configuration.
Figure 13 : Seat to floor height adjustment on a mid-wheel propulsion wheelchair.
NOTE:
1- For the mid-wheel configuration, please follow the same procedure as per the
standard frame.
2- The choice of wheels; which means the combination of front and rear wheel
diameters. The adjustment on the fork (P1 and P2) which also allows an
adjustment (see; section 4.6.2).
ADJUSTABLE HEIGHT
INTERFACE
BOLTS
FRAME
