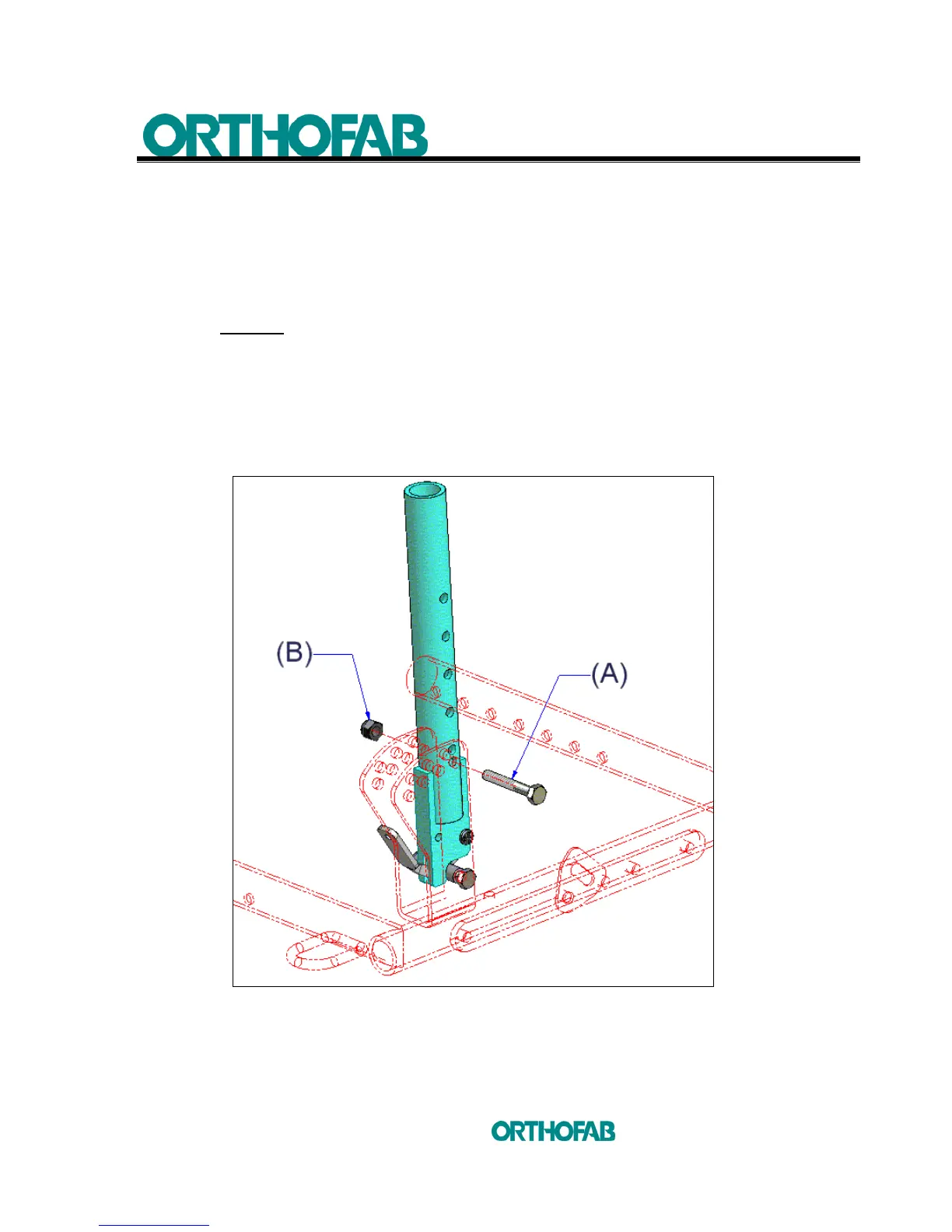

To adjust the backrest angle (see: figure 7-A):
1. Unscrew (B) nut (using a 7/16" wrench) do this on each side of the backrest
structure;
2. Position yourself behind the backrest, and take off the (A) screw on each side by
pushing lightly on the backrest to help.
• Caution
: Once both screws are removed, the backrest will be free to
swing away towards you.
3. Put back in position the backrest angle adjustment (A) screws by choosing one of
the 7 holes in the way to obtain: 90°, 95°, 100°, 105°, 110°, 115° or 120° as shown
on figure 7-A;
4. Tighten (A) screws and (B) nuts on each side of the backrest structure.
Figure 7–B : Backrest angle adjustment.
