Otodynamics Otoport Flex - ABR Labelling

Otoport OAE+ABR
User Manual for Otoport DP+TE model
27
Equipment identication

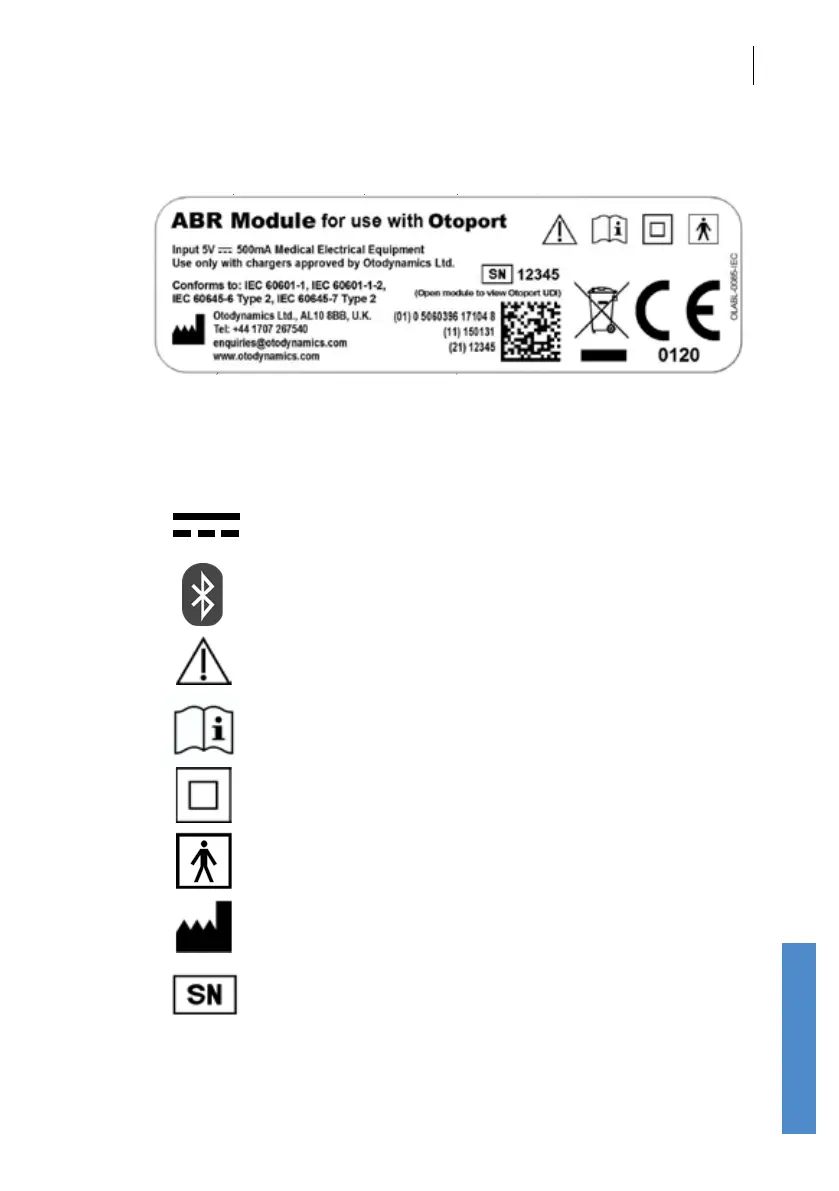

2.8 ABR labelling
2.8.1 Symbols
The label uses the following symbols:
DC
Bluetooth enabled
Caution
Refer to user manual
Class II electrical protection (double insulated)
Type BF applied part
Manufacturer
Serial Number
1 20-02-14 JM
Label Information
Size: 75mm x 22mm, corner radius 4mm
Material: Matt Silver Polyester
Adhesive: Permanent
Printer: thermal transfer, 300dpi
Ribbon: ARMOR AXR®8, black
Printed label shall meet the durability requirements of
IEC 60601-1
ABR Sleeve Product Label
International (OLABL-0085-IEC)
100279-IEC
sheet 1 of 2
JB
Arial Bold 4pt
90% width
Arial
Bold
4pt
Arial Black 8pt
Arial 7pt
Arial Bold 4.5pt
80% width
Arial Black 7pt
Symbols Key
DC
Caution
Class II electrical protection (double insulated)
Type BF applied part
Refer to operating instructions
Manufacturer
Serial Number
C CE mark with Notified Body number (SGS)
WEEE Directive applies
DWG No:
SCALE:
DIMENSIONS:
mm
DRAWN:
CHECKED:
APPROVED:
TITLE:
30-38 Beaconsfield Rd, Hatfield, Hertfordshire, AL10 8BB
ISS. DATE D.C.N. CHECKED
UNLESS OTHERWISE STATED ASSUME:
ANGULAR TOLERANCE: ± ½°
WHOLE UNITS: ±0.5mm
1 DECIMAL PLACES: ±0.3mm
2 DECIMAL PLACES: ±0.1mm
GEOMETRIC TOLERANCES SEE BS308 METRIC
DETAILS ON THIS DRAWING ARE
COPYRIGHTED AND MUST NOT BE
REPRODUCED WITHOUT THE PRIOR
CONSENT OF OTODYNAMICS LTD.
'Module' Label
JM
JM
2 01-04-14 JM
Unique Device Identifier (UDI)
GS1 barcode – application identifiers:
(01) Global Trade Item Number (GTIN)
(11) Production Date
(21) Serial Number
Barcode format:
Datamatrix: Xdim = 0.42mm, ECC 200,
Text encode = US/Western Europe (ISO 8859-1)
Arial 3pt
3 16-02-15 JM
Arial Bold 5.5pt
Arial Bold 3pt
4 11-05-15 JM
5 18-11-16 JM
