7.7.5 Communication Mode 1: Computer Link (Ethernet)
The supplement is described below to perform Ethernet communication by the computer link.
Overview

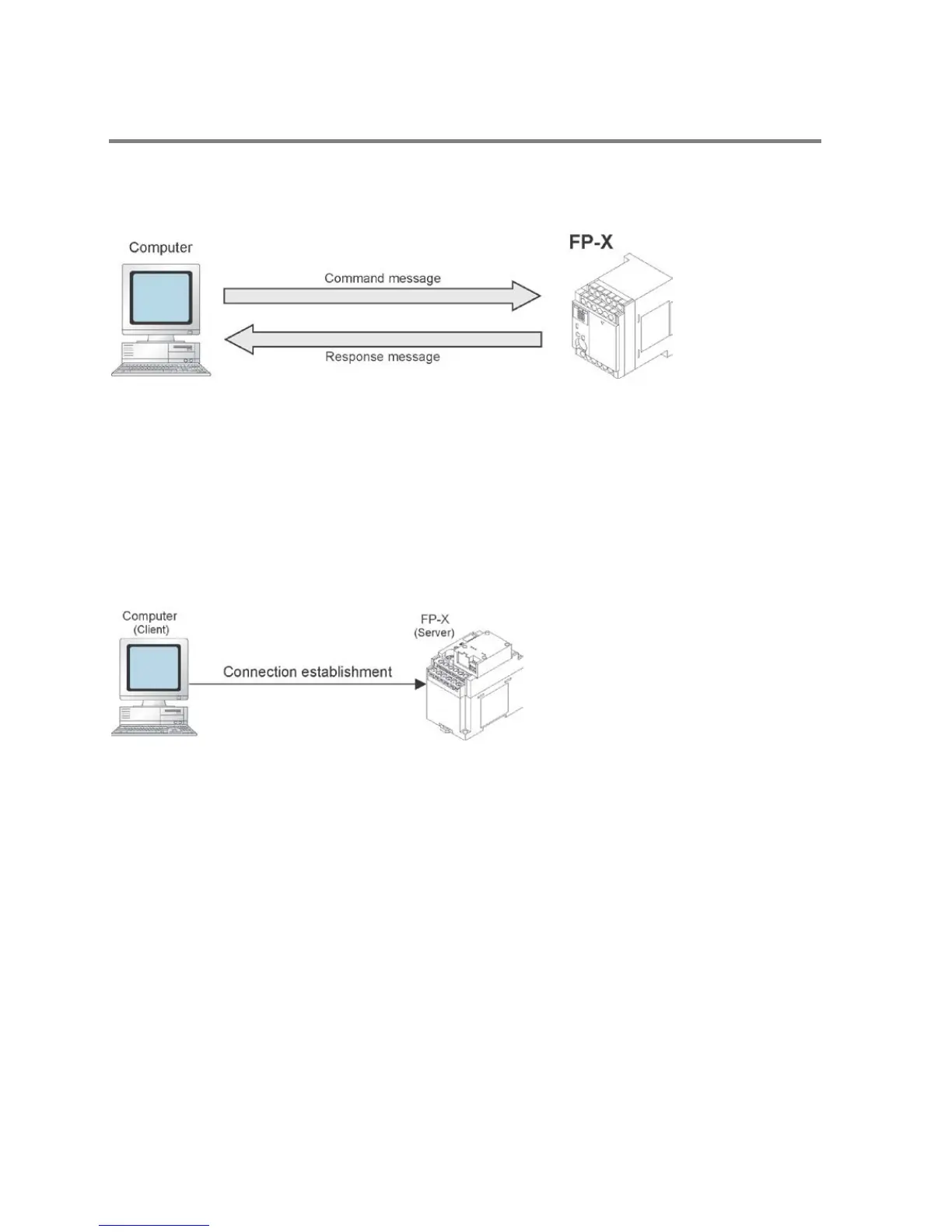

• Communication is conducted between a computer and a PLC using Ethernet by the computer link.
• Remote programming and monitoring is possible via LAN line by using a programming tool such as
FPWIN GR.
Outline of operation
• Establish connection between a computer and the FP-X.
• In that case, the connected computer is called “Client” and the connected FP-X is called “Server”. After
connection establishment, communication via TCP/IP is conducted. Up to 3 connections can be
established at the specified source port.
