Setting of communication environment for Computer link (Ethernet)
The following two settings for the FP-X and communication cassette AFPX-COM5 should be set.
- Communication environment of FP-X
- Communication environment of Communication cassette AFPX-COM5
Setting communication environment of FP-X
The programming tool FPWIN GR is used to set the baud rate or communication format of the COM1
port. Select [Option] → [PLC Configuration] in the menu bar, and click [COM1 Port ] tab.

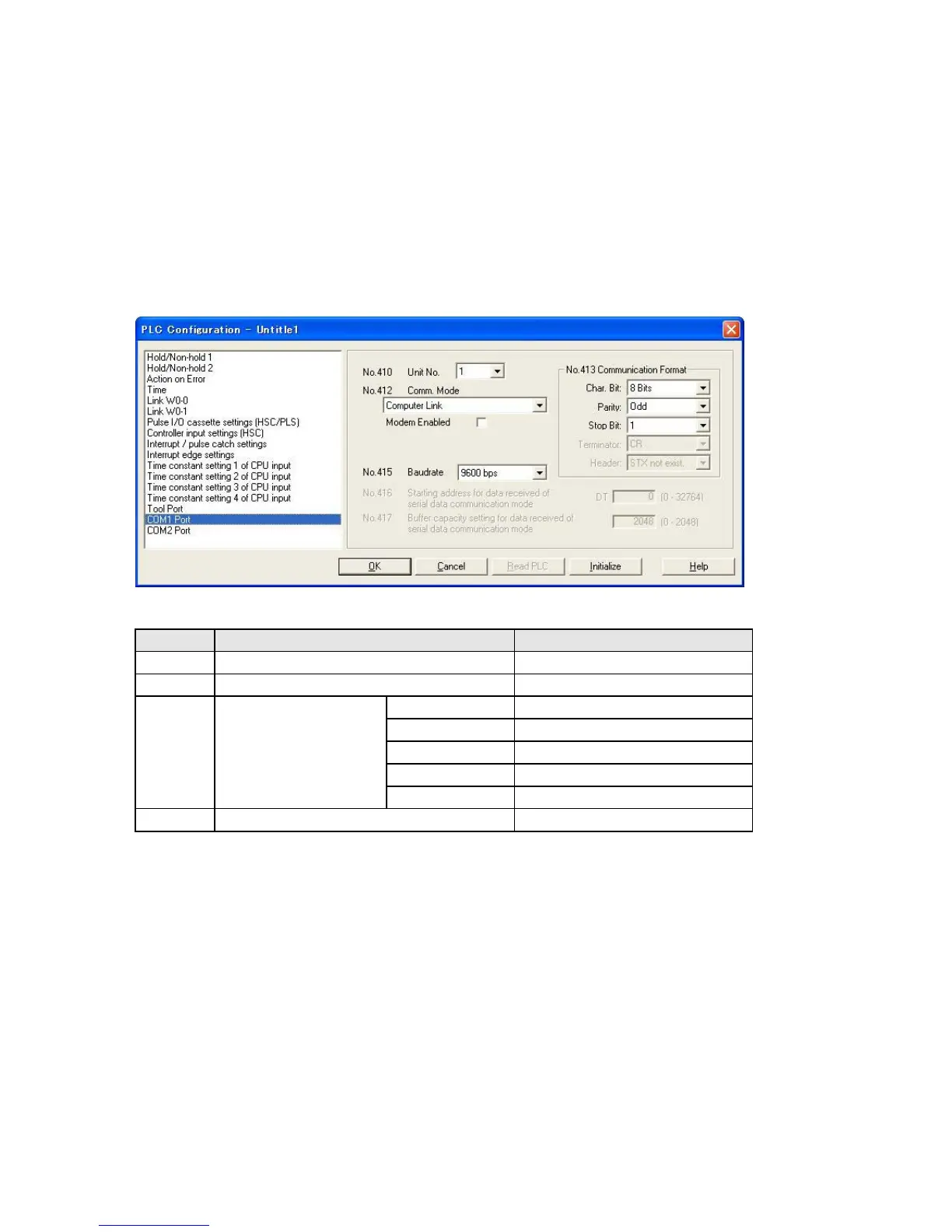

Dialog box of PLC system register setting
COM1 port setting (AFPX-COM5)
No.
Setting item
Setting value
No.410 Unit number 1 to 99
No.412
Communication mode
Computer link
No.413 Communication format
Character bit
8 bits
Parity check Odd
Stop bit 1 bit
Terminator
CR
Header
STX not exist
No.415 Baud rate 115200 bps/9600 bps
Note1)
Note1) Set the baud rate to match the baud rate (COM1 port) of the AFPX-COM5.
