8.3.4 FP-X Thermocouple Cassette
Product No.: AFPX-TC2
Item
Specifications
No. of input points
2 channels/cassette
Input range
Thermocouple type K (-50.0 to 500.0 °C)
Thermocouple type J (-50.0 to 500.0
°
C)
Digital value
In normal condition: K-500 to K5000
When exceeding rated range: K-501, K5001 or K8000
When wire is broken: K8000
When data is getting ready: K8001
Resolution
0.2 °C (The indication is 0.1 °C by the software averaging procedure.)
Sampling cycle
200 ms/ 2 channels
Total accuracy
0.5% F.S. or less + Cold junction error 1.5 °C
Input impedance
344 kΩ
Insulation
Transformer insulation, isolation IC insulation
Note1) When the wire of thermocouple is broken, the digital value will change to K8000 within 70
seconds. Practice in the ladder program a process for avoiding a risk, would be resulting from a
broken wire, and exchange the thermocouple.
Note2) From the Power-on to the converted data Ready, the digital value will be K8001. Create a ladder
program not to use the data obtained during that period.

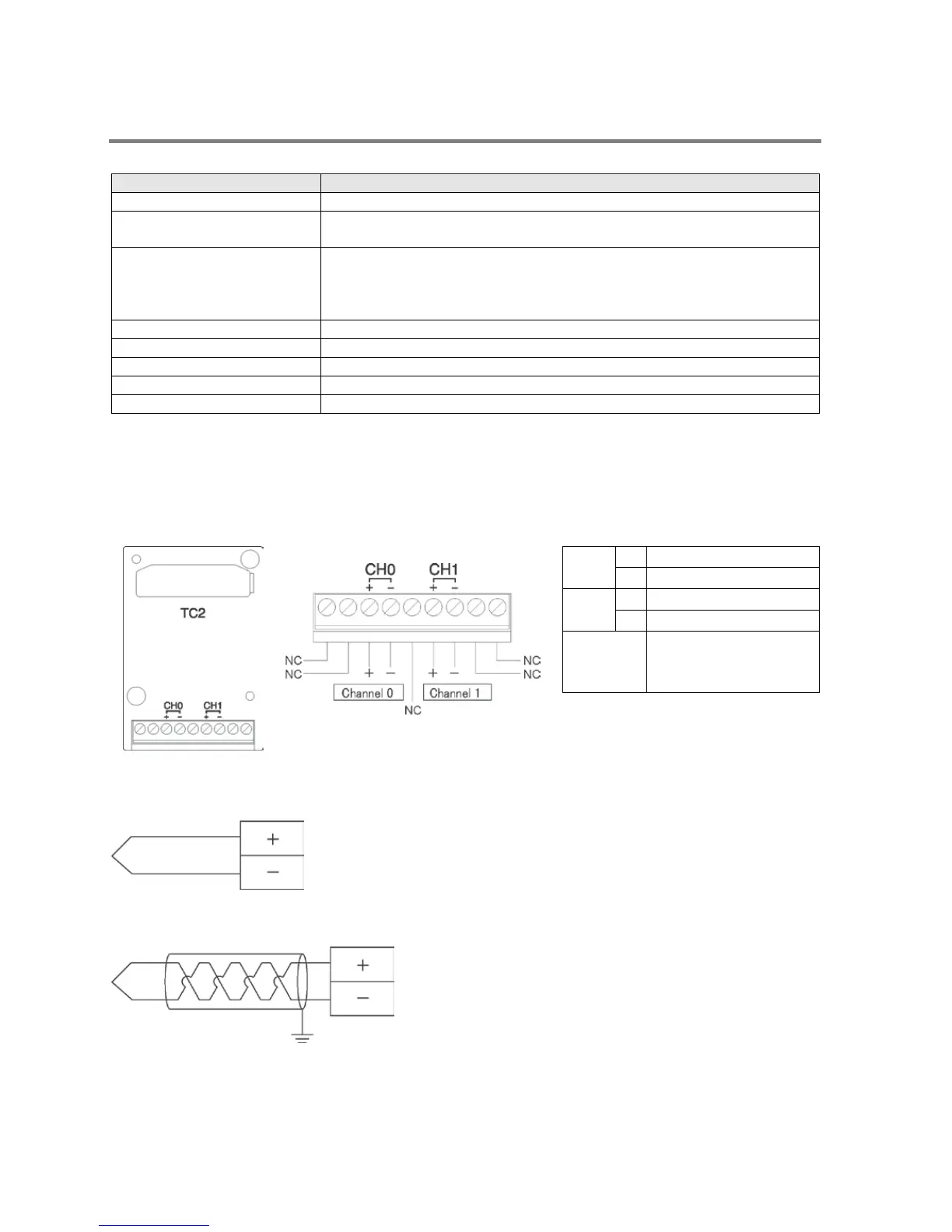

Terminal layout
CH0
+
Thermocouple input +
-
Thermocouple input -
CH1
+
Thermocouple input +
-
Thermocouple input -
NC Used by the system.
Do not connect
anything.
Connection method
Keep the space more than 100 mm between the input line and the power line/high-voltage line.
It is recommended to ground the unit using the shielded compensating wire.
