11.1.3.6. Checking for a Jam
1. Checking for a Jam
The Saddle Stitch Unit identifies any of the following conditions as a jam, and sends the jam signal to
the Copier. In response, the Copier may stop copying operation and indicate the presence of a jam on
the Control Panel.

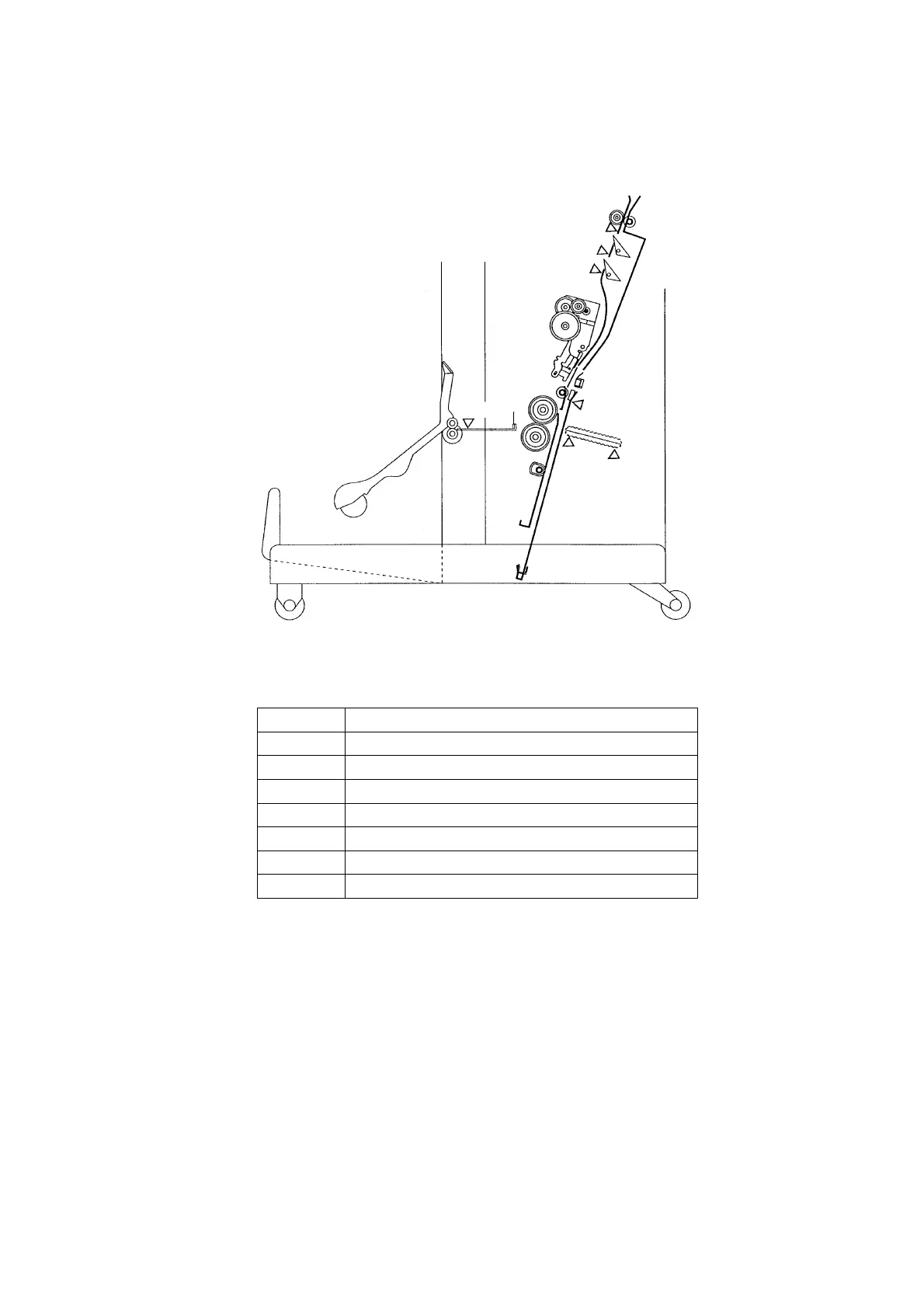

Fig. 3-049
Table. 3-003
No. Sensor
PI11S Delivery Sensor
PI14S Paper Pushing Plate Home Position Sensor
PI15S Paper Pushing Plate Top Position Sensor
PI17S Vertical Path Paper Sensor
PI18S No. 1 Paper Sensor
PI19S No. 2 Paper Sensor
PI20S No. 3 Paper Sensor
PI11S
PI15S
PI14S
PI17S
PI20S
PI19S
PI18S
