796
JAN 2006
Ver. 5.2
DP-3510/3520/3530/4510/4520/4530/6010/6020/6030
11.3.3.2.2. PCBs

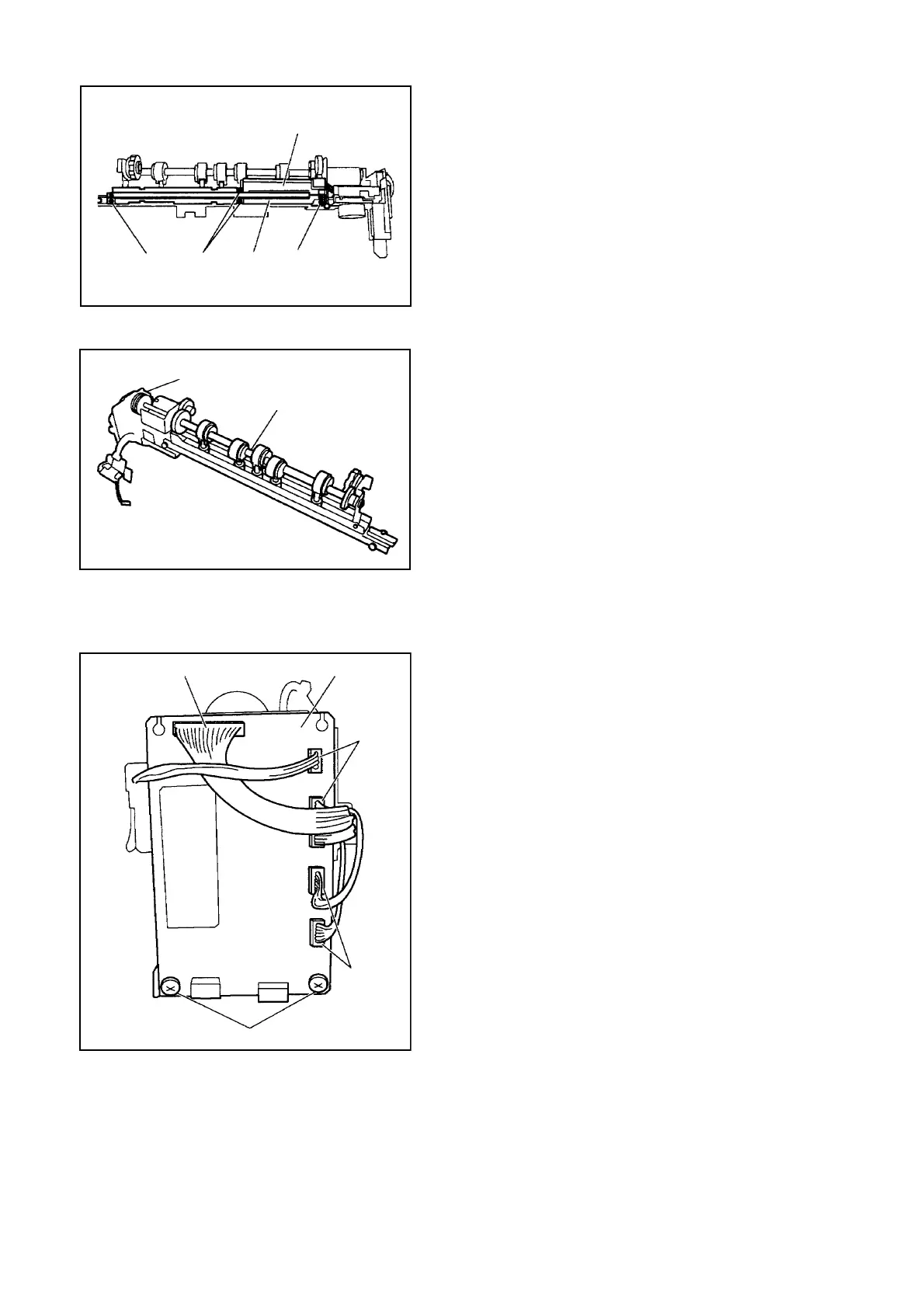

Fig. 3-083
(10) Remove 4 Screws [14] to remove the Upper
Transmission Sensor Unit [15] and Lower
Transmission Sensor [16].
Fig. 3-084
(11) Remove the Punch Unit [18] from the Horizontal
Registration Motor Assembly [17].
Fig. 3-085
2-1. Removing the Punch Controller PCB
(1) Remove 2 Screws [1].
(2) Disconnect 5 Connectors [2] to remove the
Punch Controller PCB [3].
[15]
[14]
[14]
[14]
[16]
[17]
[18]
[2]
[2]
[2]
[1]
[3]
