106

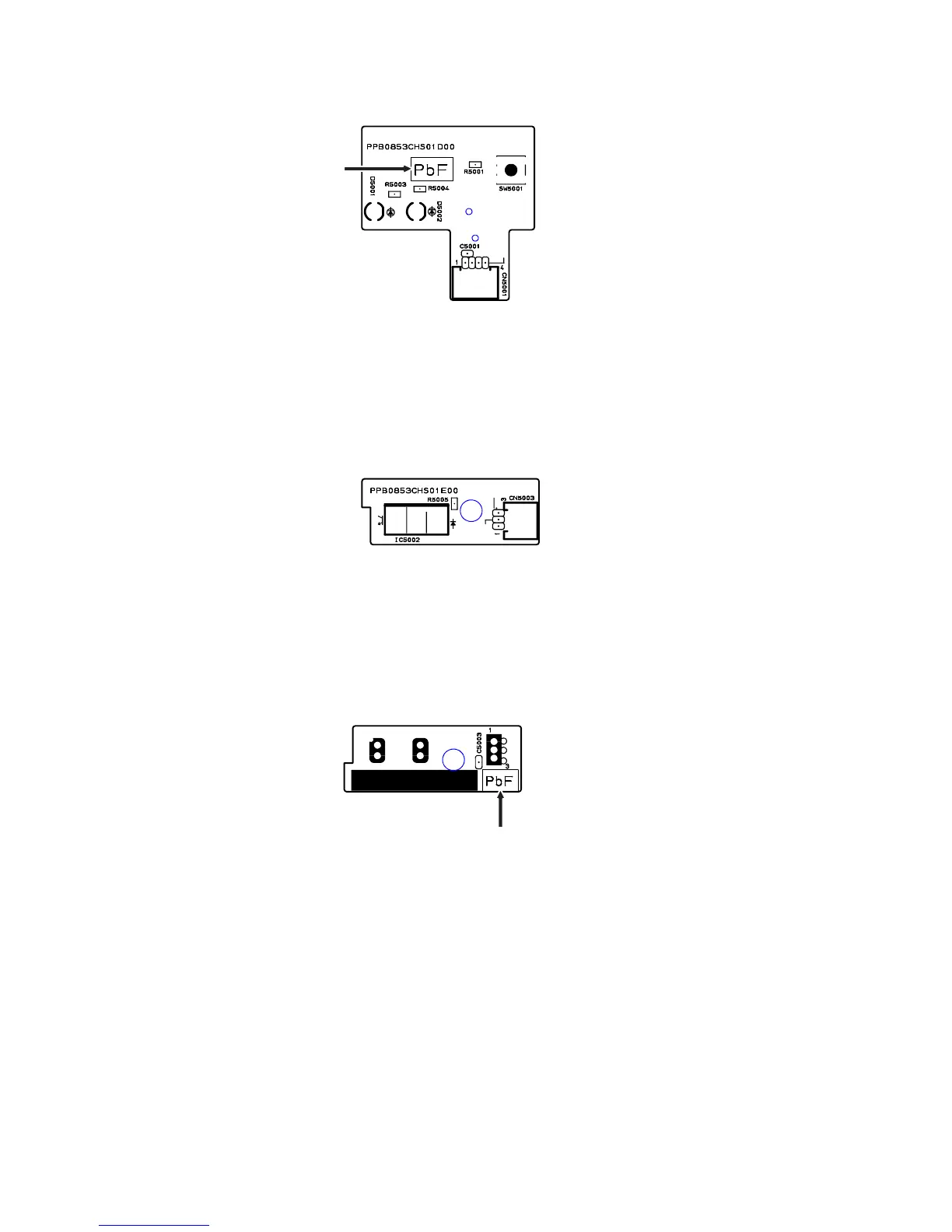

13.2. PANEL Board
13.3. PAPER SENSOR Board
13.3.1. Front Side
13.3.2. Back Side
ZC
R5010
R5009
R5008
R5007
Panel Board
PbF stamp
ZC
R5015
R5016
R5014
Paper Sensor Board
PbF stamp
