34

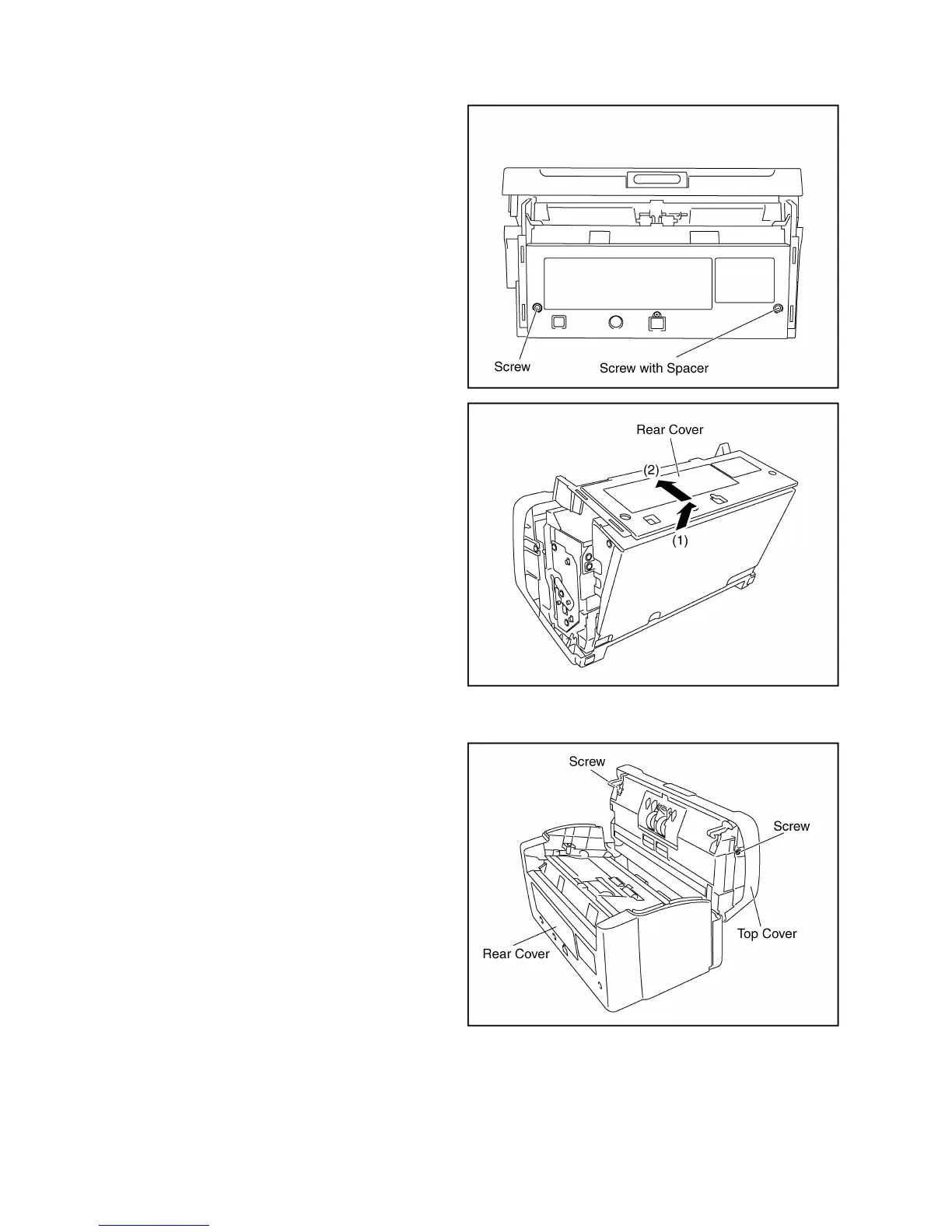

8.2.5. Rear Cover
8.2.6. Top Cover
(1) Remove the Side Cover (R). (See 8.2.1.)
(2) Remove the Side Cover (L). (See 8.2.2.)
(3) Remove the screw and the screw with spacer.
(4) While slightly lifting the Rear Cover in the direction of the
arrow (1) (paying attention to the contact to the side of
Power Switch), slide the cover out in the direction of the
arrow (2).
(1) Push "Door Open Button" to open the ADF Door.
(See 8.2.1-(1).)
(2) Remove the 2 screws (1 from each side).
(3) Close the ADF Door slowly until it clicks into place.
