35

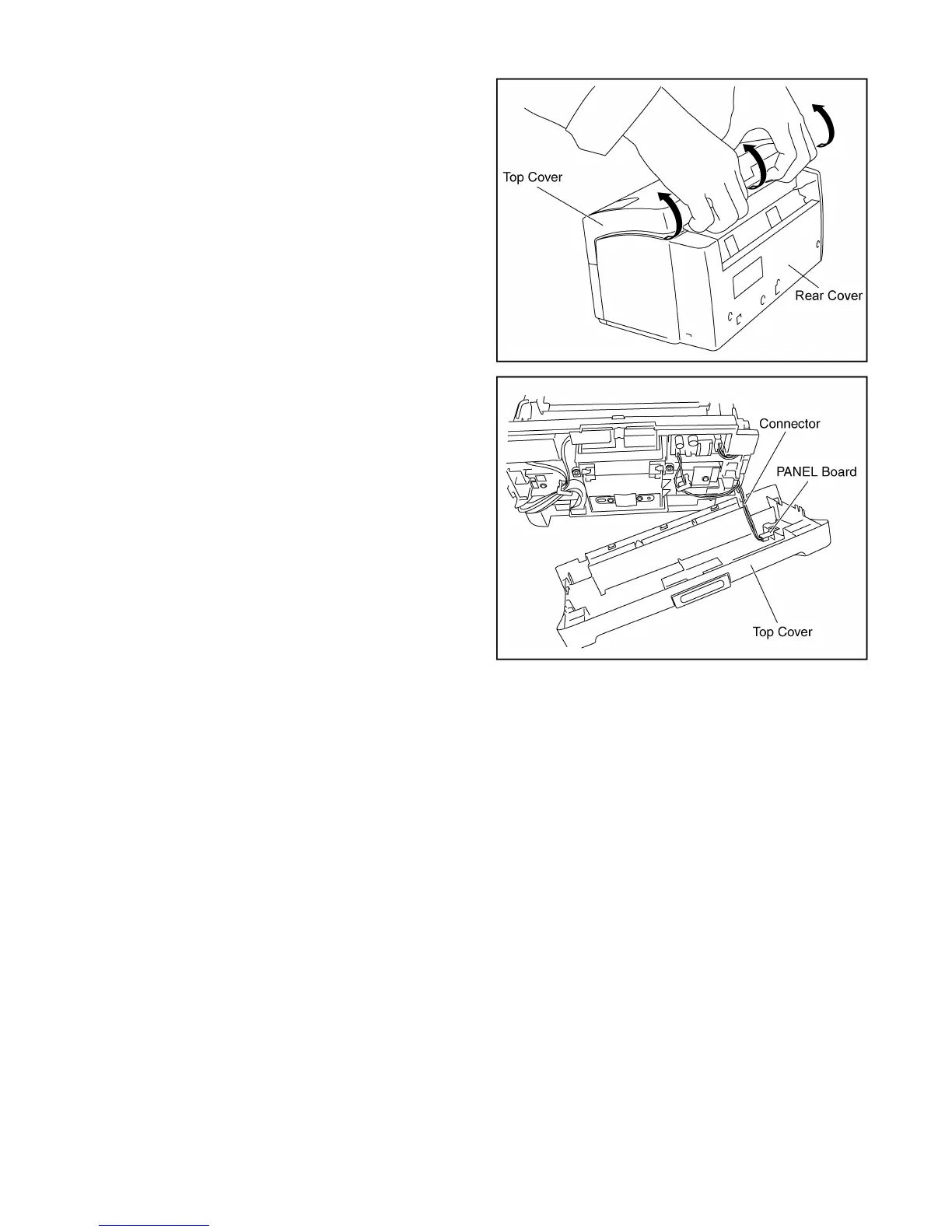

(4) Pull and remove the Top Cover while releasing the 3 claws.
(5) Disconnect the connector to the PANEL Board to release
the Top Cover from the scanner.
