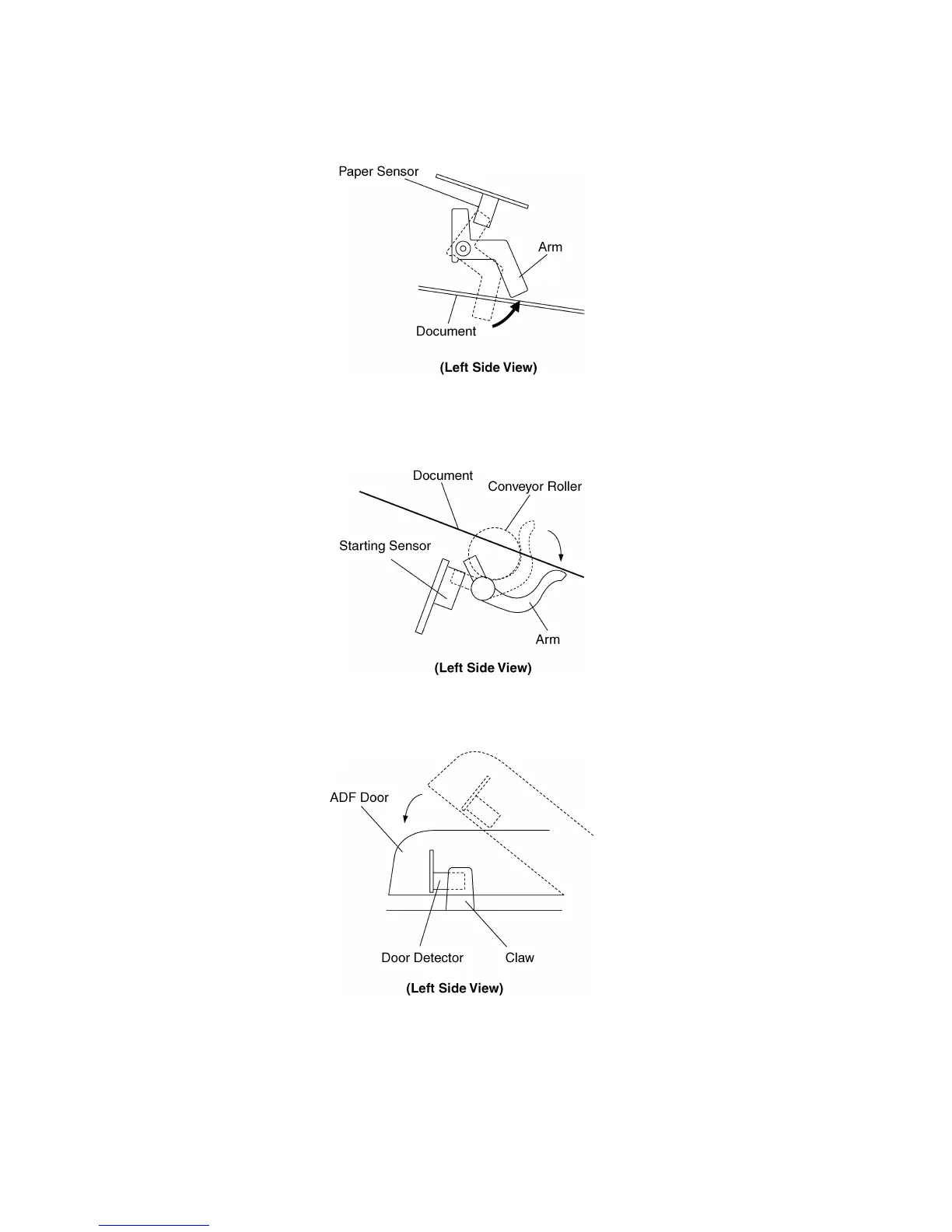

6.2. Sensor Mechanism
6.2.1. Paper Sensor
The Paper Sensor turns ON, when the document is properly placed on the Feed Tray, pushing the arm up away from the
sensor.
6.2.2. Starting Sensor
The Starting Sensor turns ON when the document is fed to the scanning-start position, pushing the arm down away from
the sensor.
6.2.3. Door Detector
The Door Detector turns OFF when the ADF Door is closed, interrupting the detector with the claw.
