8.2. Exterior
8.2.1. Side Cover (R)
8.2.2. Side Cover (L)

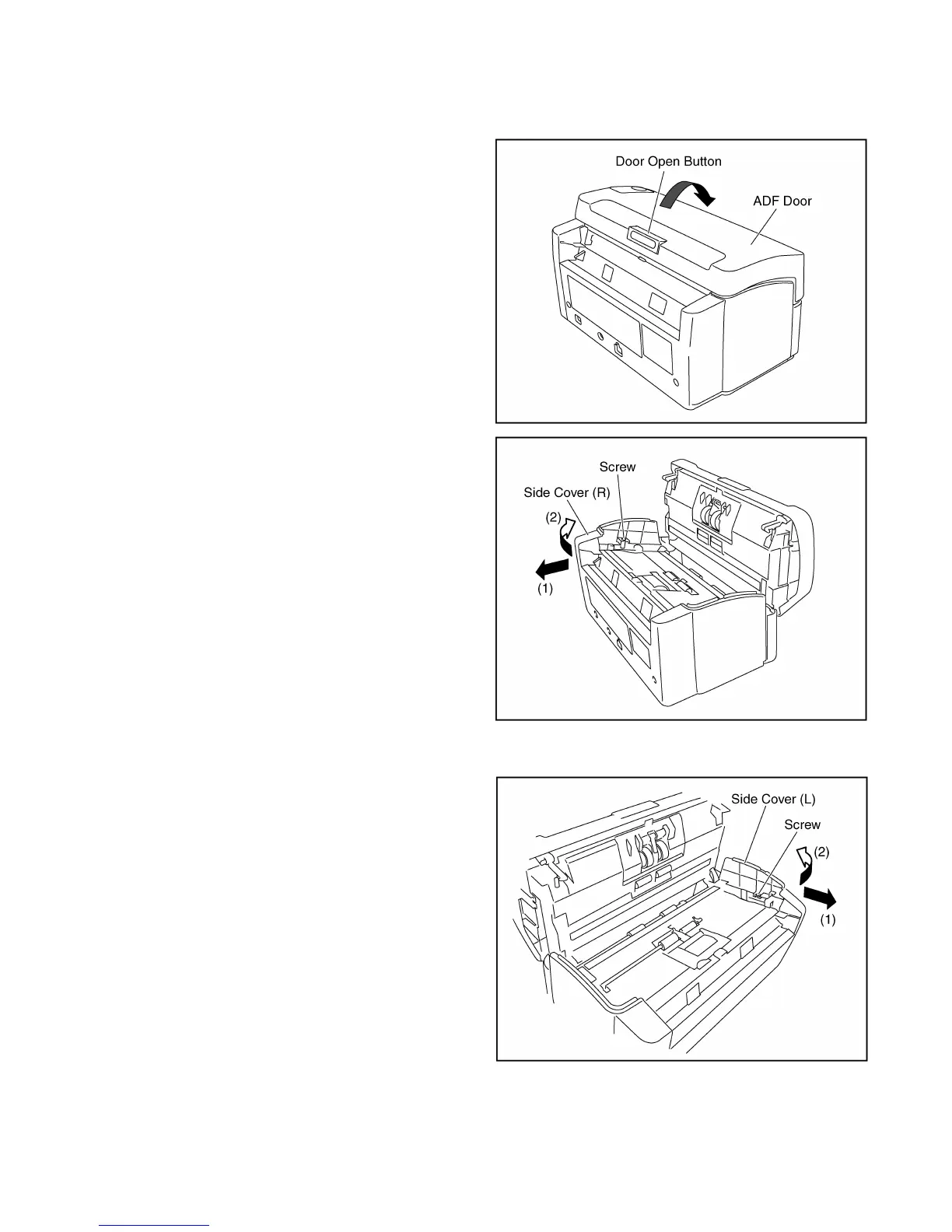

(1) Push "Door Open Button" to open the ADF Door.
(2) Remove the screw.
(3) Remove the Side Cover (R) by sliding the cover backward
in the direction of the arrow (1), and away from the scanner
in the direction of the arrow (2).
(1) Push "Door Open Button" to open the ADF Door.
(See 8.2.1-(1).)
(2) Remove the screw.
(3) Remove the Side Cover (L) by sliding the cover backward in
the direction of the arrow (1), and away from the scanner in
the direction of the arrow (2).
