7.3. Replacing Limited Life Parts
7.3.1. Paper Feed Roller
(1) Turn off the scanner by turning the Power Switch off and
unplugging the AC Adaptor from the scanner. (See 7.2.1.)
(2) Remove the Feed Tray. (See 7.2.1.)
(3) Push the Door Open Button to open the ADF Door.
(See 7.2.1.)

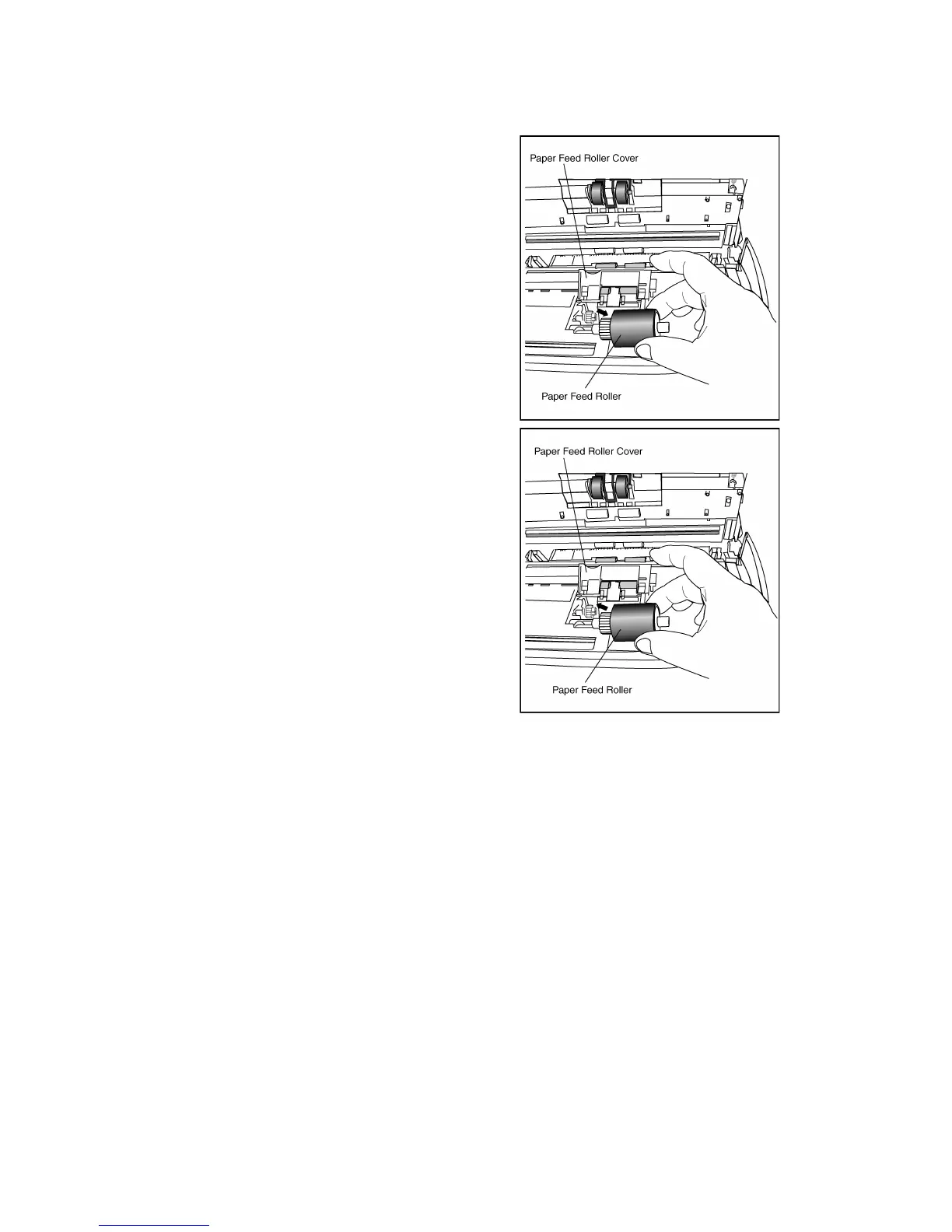

(4) After opening the Paper Feed Roller Cover, remove the
Paper Feed Roller.
(5) Take out a new Paper Feed Roller from the Roller
Exchange Kit (KV-SS030).
(6) Install the new Paper Feed Roller with its gear facing to the
left (seen from the back), and close the Paper Feed Roller
Cover.
Note:
Make sure to close the Paper Feed Roller Cover
tightly, by pressing both ends of the cover.
(7) Close the ADF Door slowly until it clicks into place.
(See 7.2.3.)
(8) After installing the Feed Tray, turn on the scanner by
plugging the AC Adaptor to the scanner and turning the
Power Switch on. (See 4.2 and 4.3.)
(9) Execute ā€œClear Counterā€ for replacing the Paper Feed
Roller with Service Utility. (See 9.3.4.)
