40
8.3. Mechanical Block

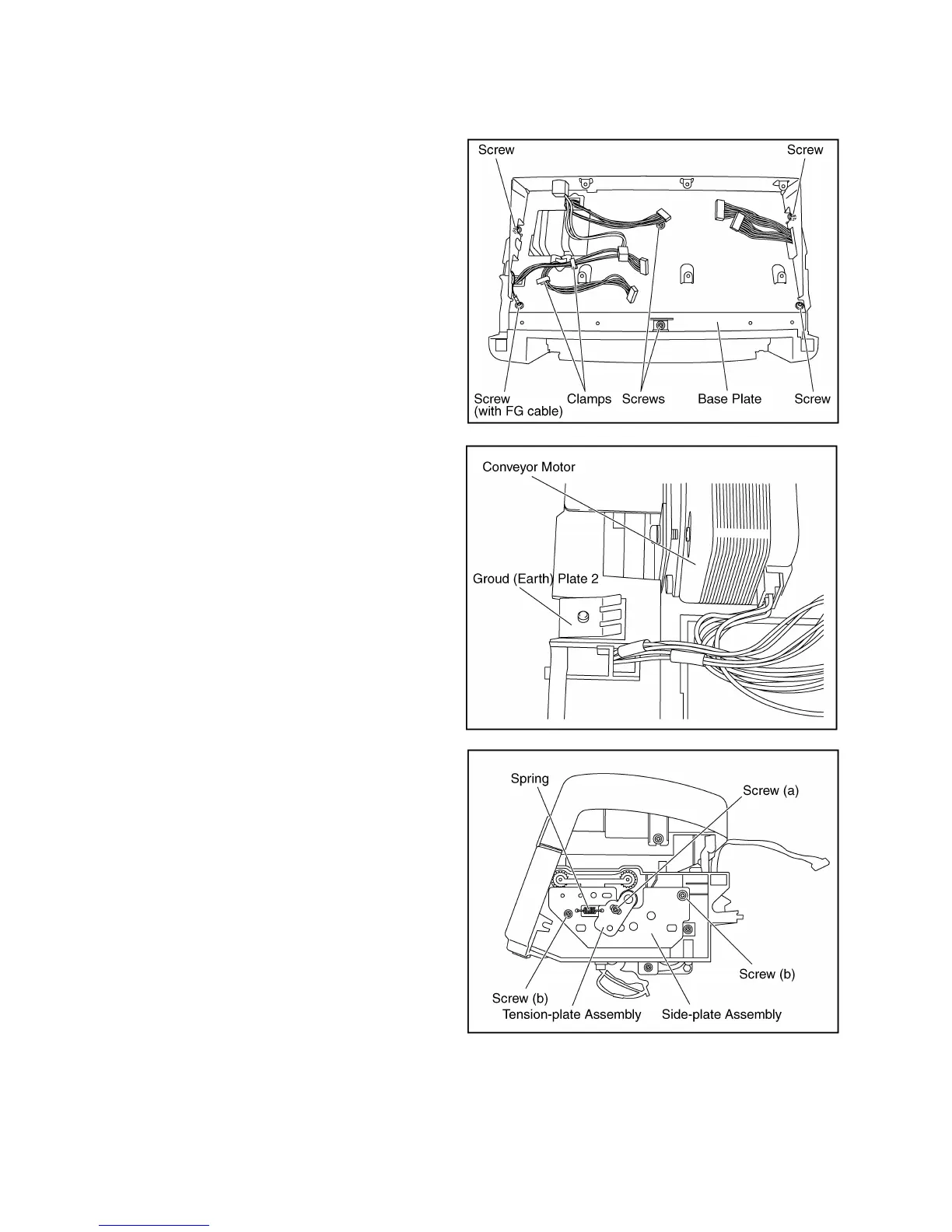

8.3.1. Conveyor Motor
(1) Remove the Rear Cover. (See 8.2.5.)
(2) Remove the CONTROL Board. (See 8.4.4.)
(3) Release the connector cables from the clamps inside and
outside of the Base Plate.
(4) Remove the 5 screws and the screw with the FG cable.
(5) Remove the Base Plate, paying attention to the contact
between the cables and the plate edge.
(6) Remove the Ground (Earth) Plate 2.
(7) Remove the screw (a) and the Tension-plate Assembly
with the spring.
And remove the 2 screws (b) and the Side-plate Assembly.
To Next Page
