8 DISASSEMBLY INSTRUCTIONS
8.1. Disassembly Flowchart
The flowchart indicates disassembly sequence of the Exterior item, Mechanical parts’ item, Unit Components’ item, and Circuit
Board assemblies’ item. When reassembling, perform the steps in the reverse order unless otherwise instructed in the
Reassembling Notes.
Note:

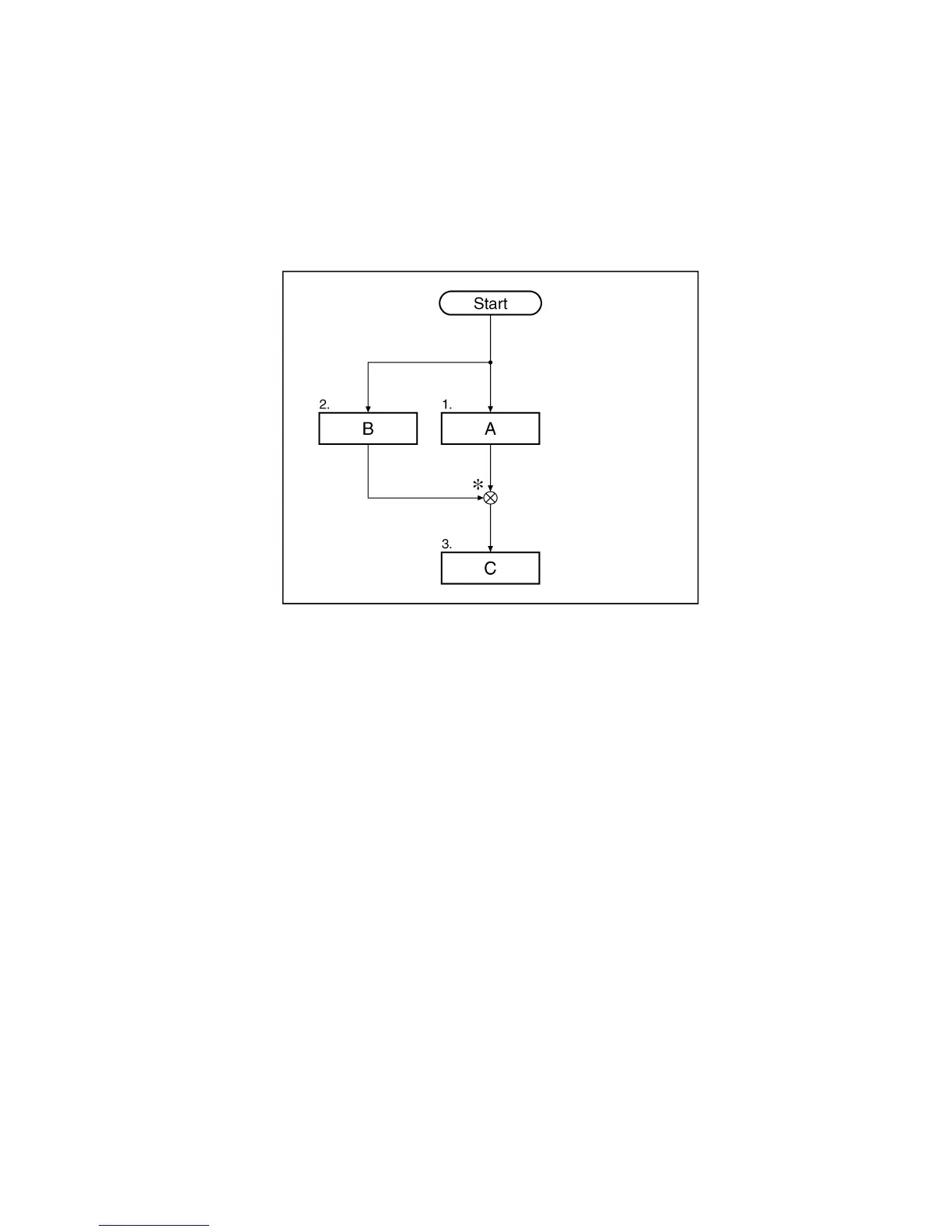

Disassembly flowchart explanation
* This sample flowchart shows that, to disassemble C, procedures 1 and 2 must be performed first before proceeding
to procedure 3.
To Next Page
