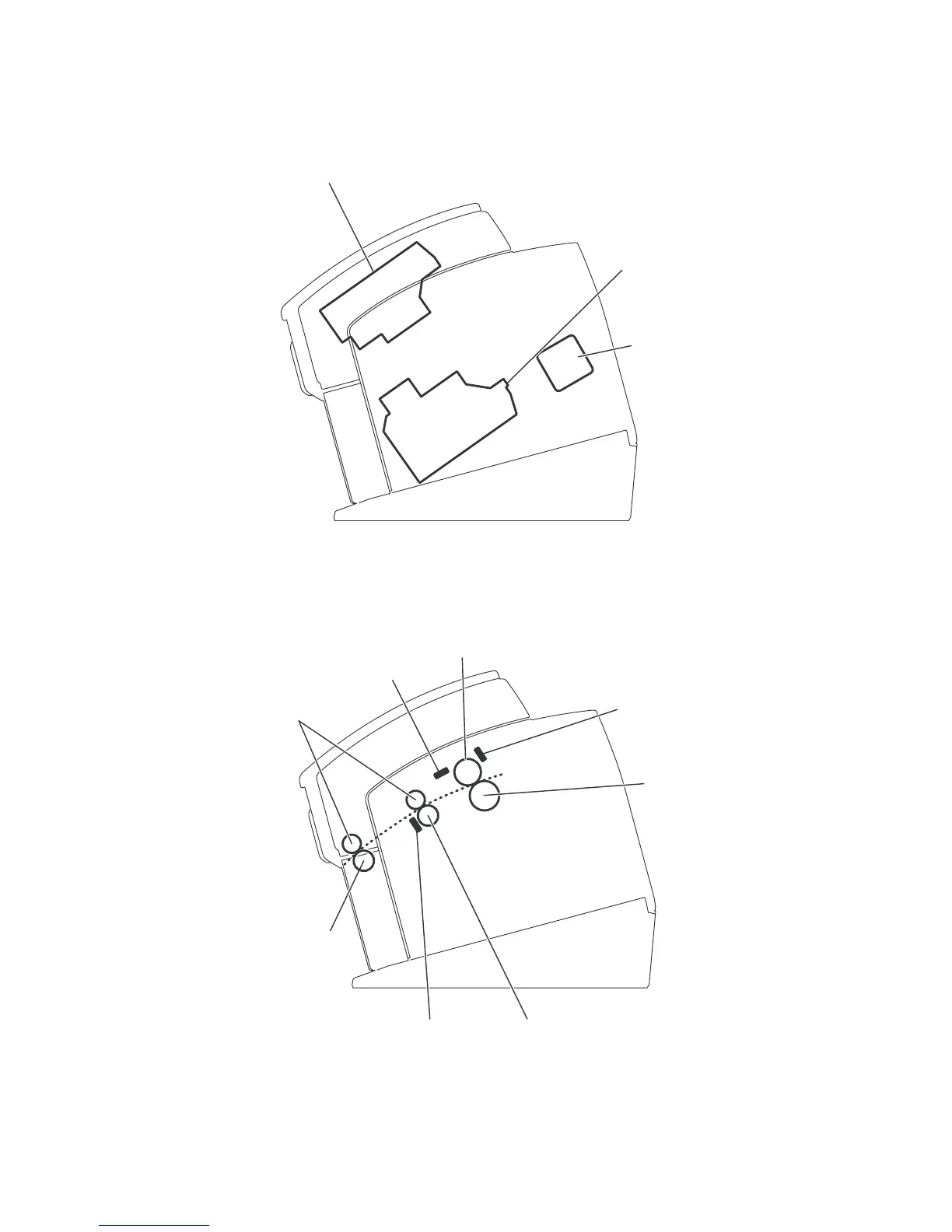

5 SECTIONAL VIEWS
5.1. CCD
5.2. Rollers and Sensors
Optical Unit (F)
Optical Unit (B)
Conveyor Motor
Conveyor RollerStarting Sensor
Exit Roller
Free Rollers
Double-feed Prevention Roller
Door Detector
Paper Sensor
Paper Feed Roller
