30

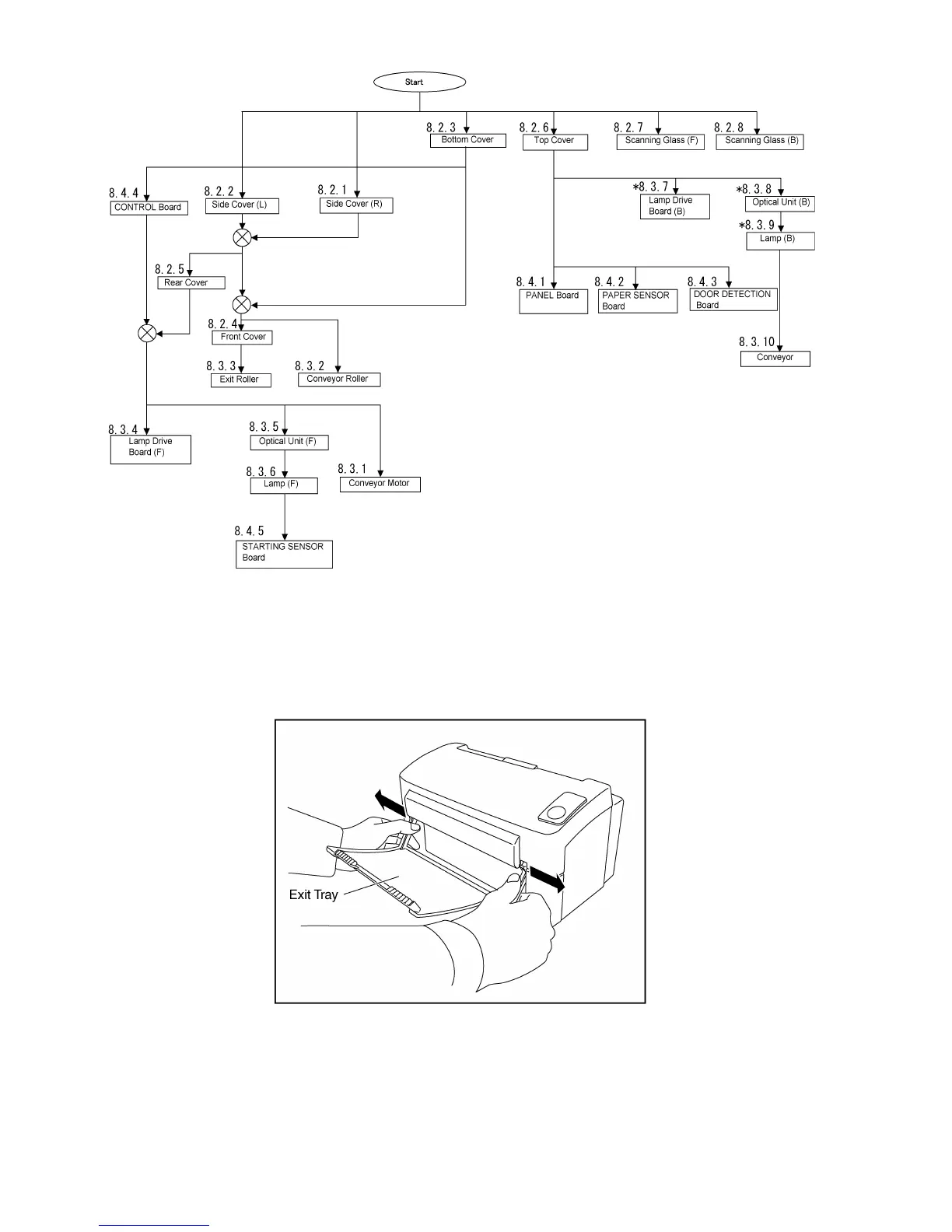

Note:
1. Procedures designated with an “* “ mark, are only applicable to KV-S1025C Series.
2. Before disassembling any of the above parts except for 8.2.7 and 8.2.8, perform the following steps.
(1) Unplug AC Adaptor from the scanner. (See 7.2.1.)
(2) Remove the Feed Tray and Stand. (See 4.2.)
(3) Remove the Exit Tray, extending the tips of the tray on both sides in the direction of the arrows.
To Next Page
