14
4.2.3. Installing Mixed Batch Card Guide (useful for scanning mixed document / card)
4.2.4. Scanning Documents and Card
When scanning documents and a card at a time, the setting procedures are as follows.
1. Set documents on the Feed Tray.
Note:
• When using the mixed batch card guide, the document guides can not be adjusted
less than A5 size.
• Keep the thickness of documents up to 2 mm (0.08 in.); [20 sheets at 80 g/m
2
] on the Feed Tray.
2. Set the card on the Mixed Batch Card Guide in the landscape.
Note: The acceptable card condition on the Mixed Batched Card Guide
• ISO format card
Size: 85.6 x 54.0 mm (3.37 x 2.13 in.)
Thickness: 0.76 mm (0.03 in.)
Embossed card is also available.
• Set only one card at a time.

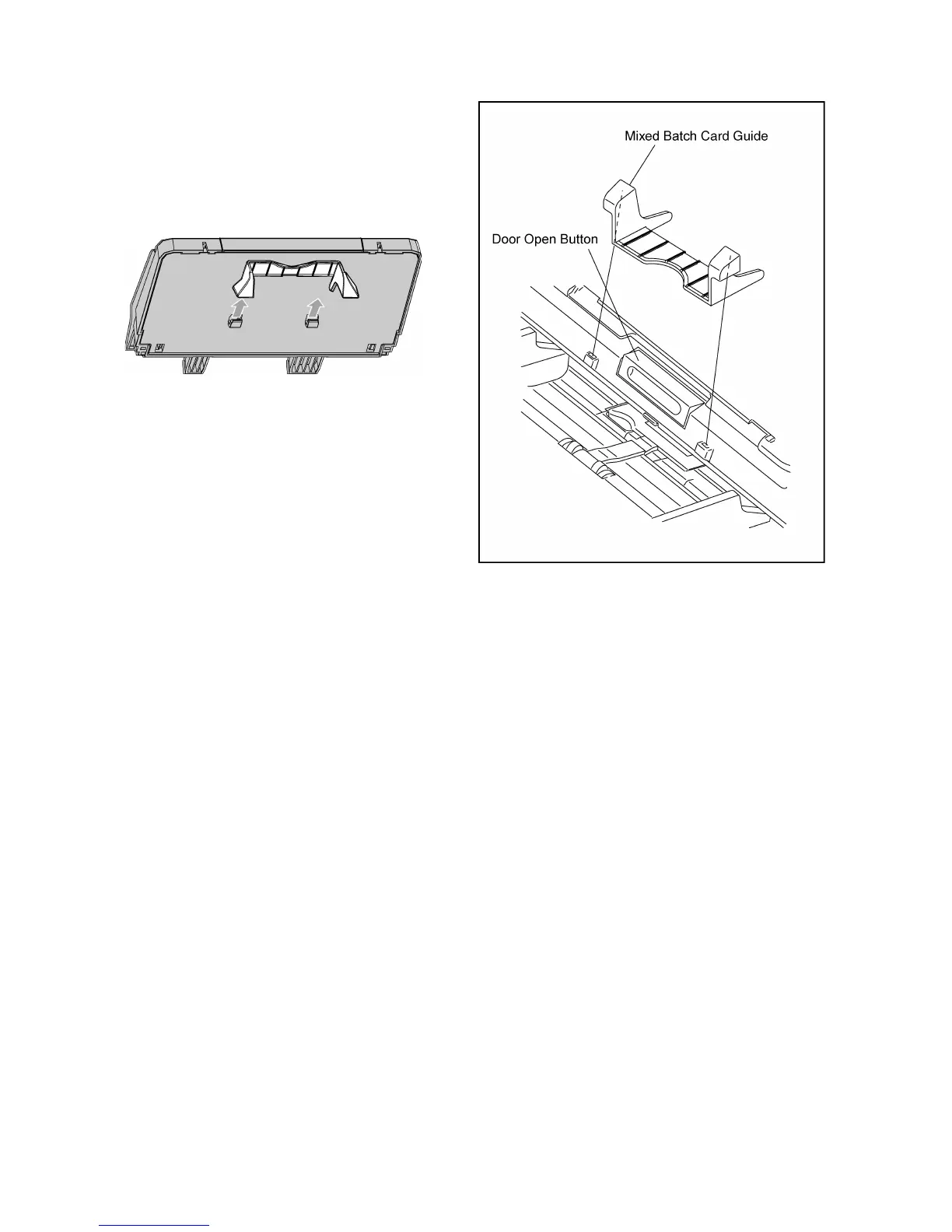

(1) Attach the Mixed Batch Card Guide by inserting its tips
into the holes near the Door Open Button.
Note: Storing the Mixed Batch Card Guide
When not using the guide, be sure to store it
on the rear of the Feed Tray.
To Next Page
