7.2.2. Cleaning
According to the instructions in the following figures Fig. 7.2.2-1 and Fig. 7.2.2-2, wipe off the dirt from each part
surface, so as to realize a high-performance on the scanning condition.

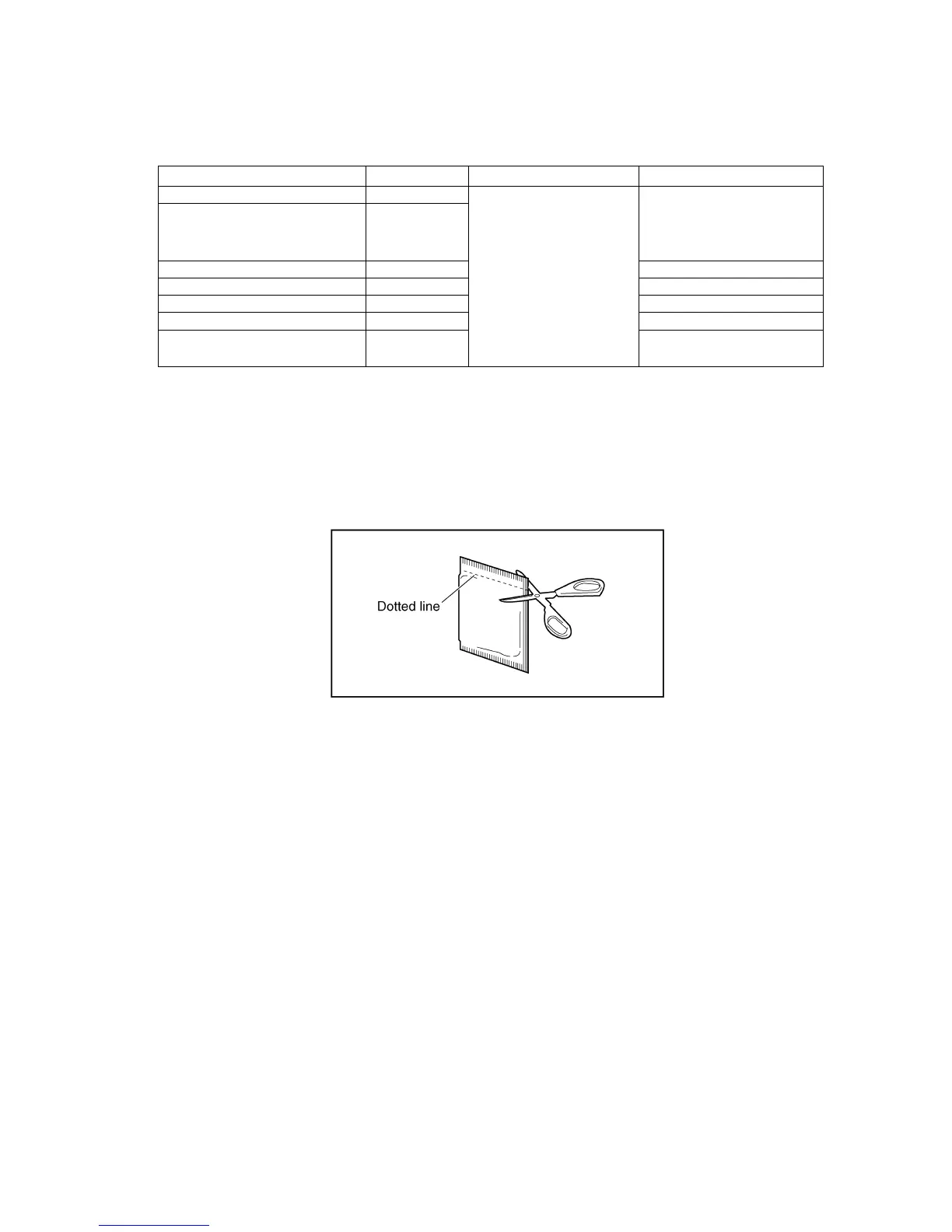

(Fig. 7.2.1-1): Cleaning Parts and Action
Note:
*1
Action Code shows cleaning method as follows.
C: Clean the dirt off around each surface with KV-SS03 Option (Roller Cleaning Paper).
Note:
*2
1. Roller Cleaning Paper
• Open the bag on the dotted line, and take out the Roller Cleaning Paper.
• If the bag is left open for a long period of time before using it, the alcohol will evaporate. Please use the Roller
Cleaning Paper immediately after opening the bag.
• The Roller Cleaning Paper (KV-SS03 Option) is available via sales route.
2. If the ADF Door does not open even with the Door Open Button pushed repeatedly, there is a possibility that the
door is not latched. In this case, try to close the ADF Door until it clicks into place.
Maintenance Parts
*1
Action Code
Action Comments
Paper Feed Roller
C
Clean each surface with
KV-SS03 Option (Roller
Cleaning Paper) to wipe off
the dirt around its surface.
1. How to deal with the
Roller Cleaning Paper and
others
→ See Note
*2
.
2. Cleaning position
→ See Fig. 7.2.2-2.
After cleaning the Paper Feed and
Double-feed Prevention Rollers,
execute “Clear Counter” for
cleaning roller with Service Utility.
(See 9.3.)
Double-feed Prevention Roller
C
Conveyor Roller
C
Exit Roller
C
Free Rollers
C
Scanning Glass (F)
C
Scanning Glass (B)
: KV-S1025C Series Only
C
