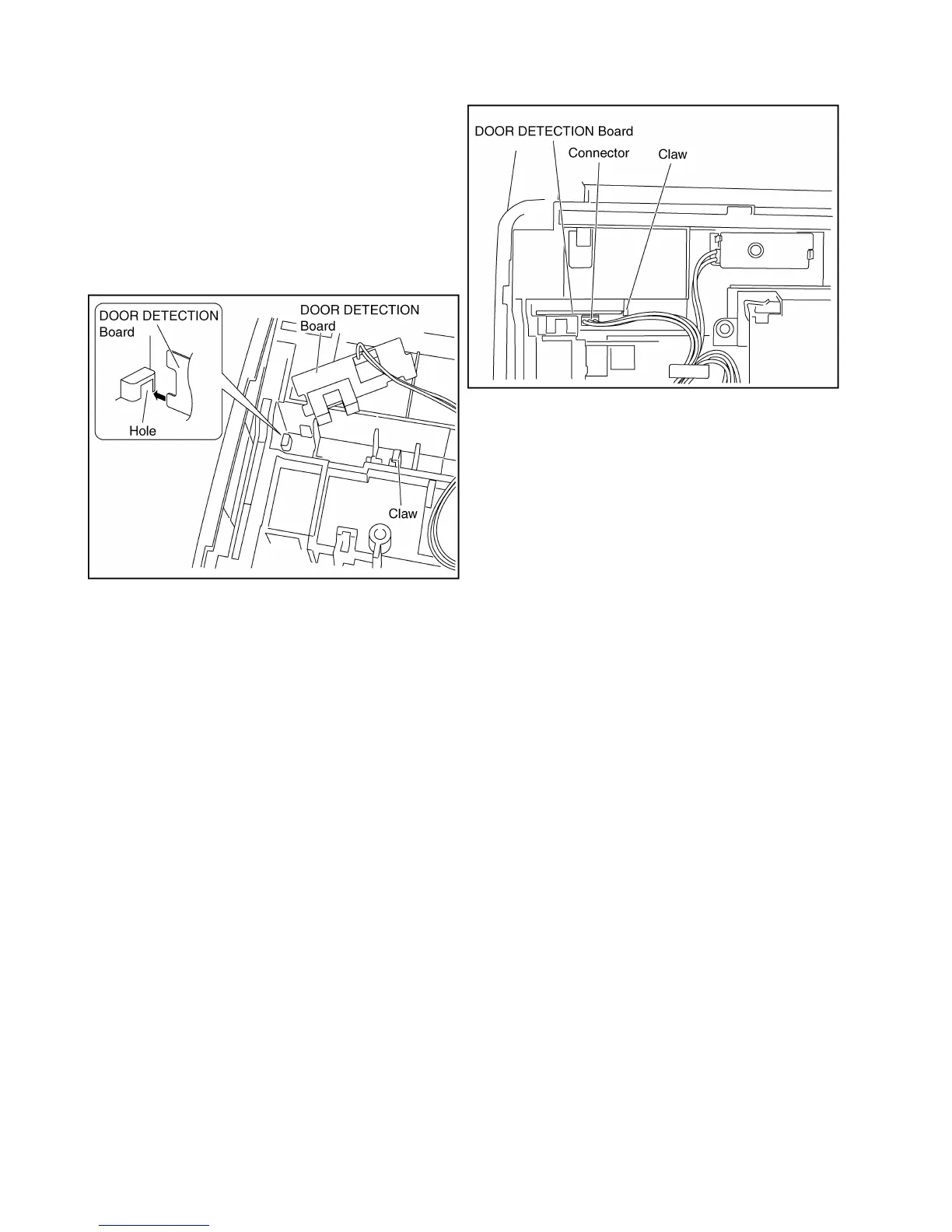

8.4.3. DOOR DETECTION Board
(1) Remove the Top Cover. (See 8.2.6.)
(2) While unlocking the claw, remove the DOOR DETECTION
Board from the scanner.
(3) Disconnect the connector.
Reassembling Note:
Be sure to support the board with the claw after
inserting the tip of the board into the hole to
determine the detector position.
