Panasonic Lumix DMC-GH4

1. Before Use
18

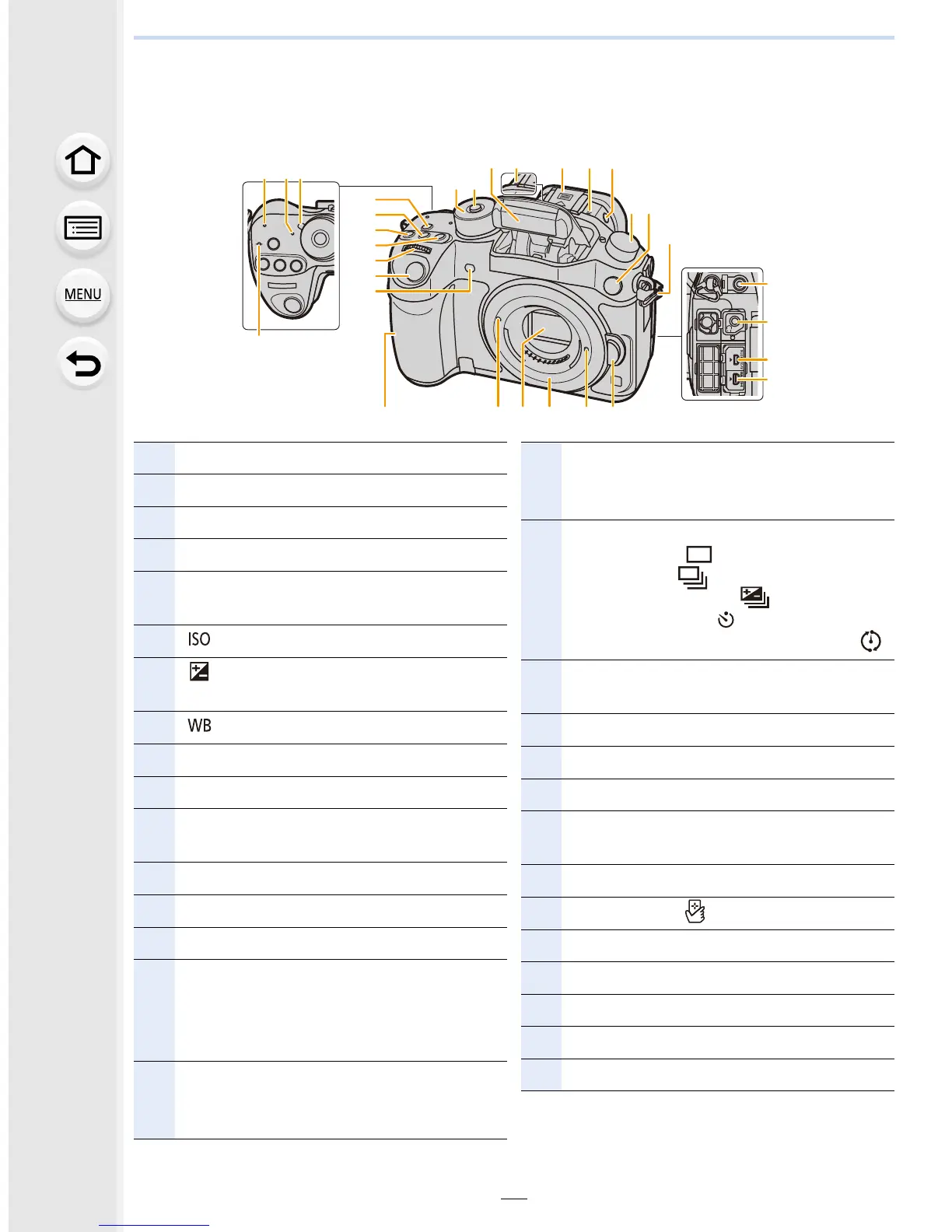

Names and Functions of Components
∫ Camera body
5
1
4
29 302625 2827
15 16 1514
12
17
1819
20
6
7
8
9
10
11
21
22
23
24
2 3
13
1 Wi-Fi
®
connection lamp (P255)
2 Status indicator (P36)
3 Camera ON/OFF switch (P36)
4 Focus distance reference mark (P110)
5
[Wi-Fi] button (P255)/[Fn1] button
(P317)
6 [ ](ISO sensitivity) button (P132)
7
[ ](Exposure Compensation) button
(P157)
8 [ ](White Balance) button (P135)
9 Front dial (P42)
10 Shutter button (P39)
11
Self-timer indicator (P118)/
AF Assist Lamp (P307)
12 Mode dial (P41)
13 Mode dial lock button (P41)
14 Flash (P180)
15
Stereo microphone (P207)
• Be careful not to cover the microphone
with your finger. Doing so may make
sound difficult to record.
16
Hot shoe (Hot shoe cover) (P347)
• Keep the Hot Shoe Cover out of reach
of children to prevent swallowing.
17
Flash open button (P180)
• The flash opens, and recording with the
flash becomes possible.
18
Drive mode dial
Single (P112):
Burst (P113):
Auto Bracket (P116):
Self-timer (P118):
Time Lapse/Animation (P120, 124):
19
Flash synchro socket
(Flash synchro socket cap) (P348)
20 Shoulder strap eyelet (P26)
21 [MIC] socket (P350)
22 Headphone socket (P62, 208)
23
[AV OUT/DIGITAL] socket (P326, 332,
335, 337)
24 [HDMI] socket (P325)
25 NFC antenna [ ] (P263)
26 Lens fitting mark (P23)
27 Sensor
28 Mount
29 Lens lock pin
30 Lens release button (P24)
