9.6. Disassembly of Panel P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Assembly”.

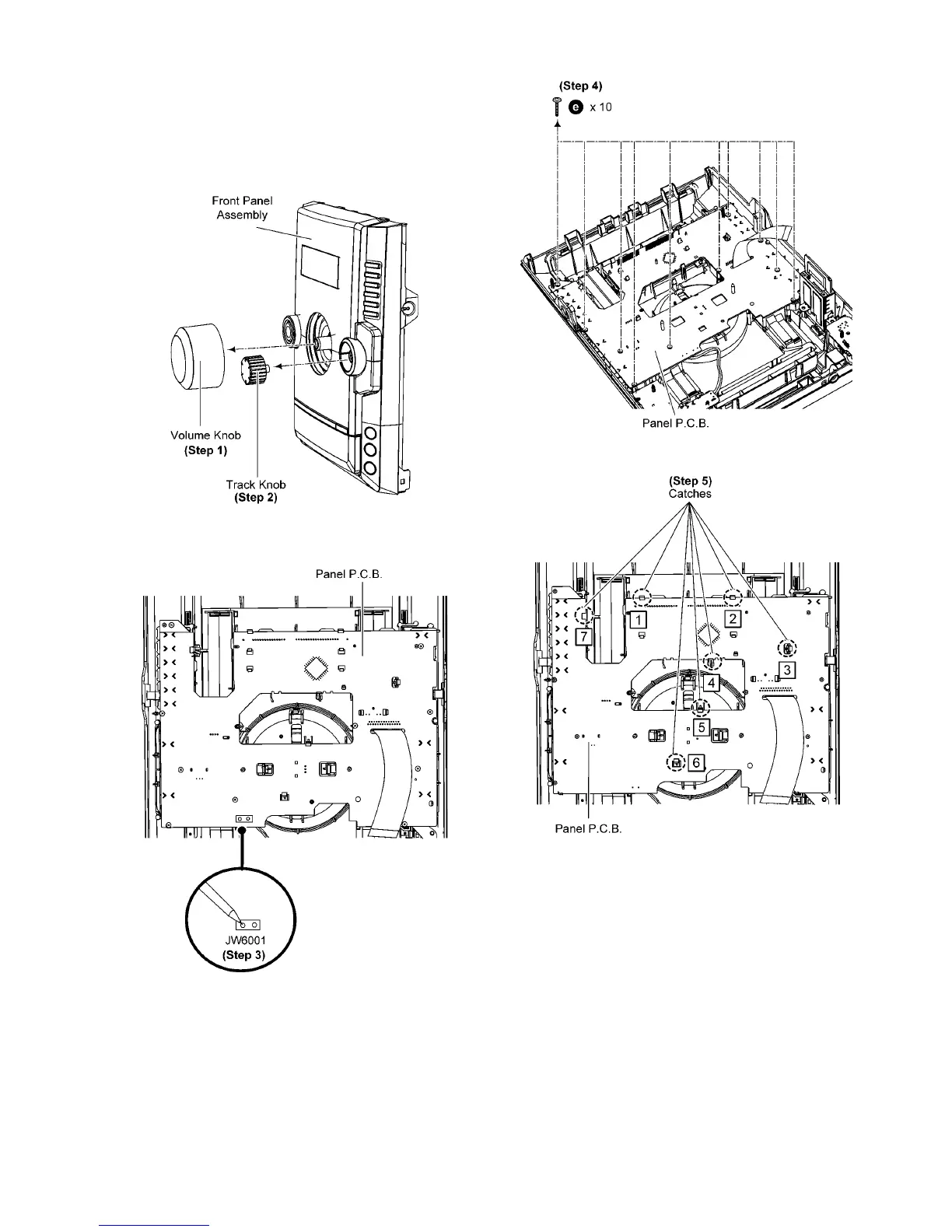

Step 1 Remove the Volume Knob.
Step 2 Remove the Track Knob.
Step 3 Desolder 2 pins at the cable holder (JW6001) on Panel
P. C. B ..
Step 4 Remove 10 screws.
Step 5 Release catches by following the sequences (1-7).
To Next Page
