Panasonic SA-AKX10PH - Disassembly of CD Servo P.C.B.

56

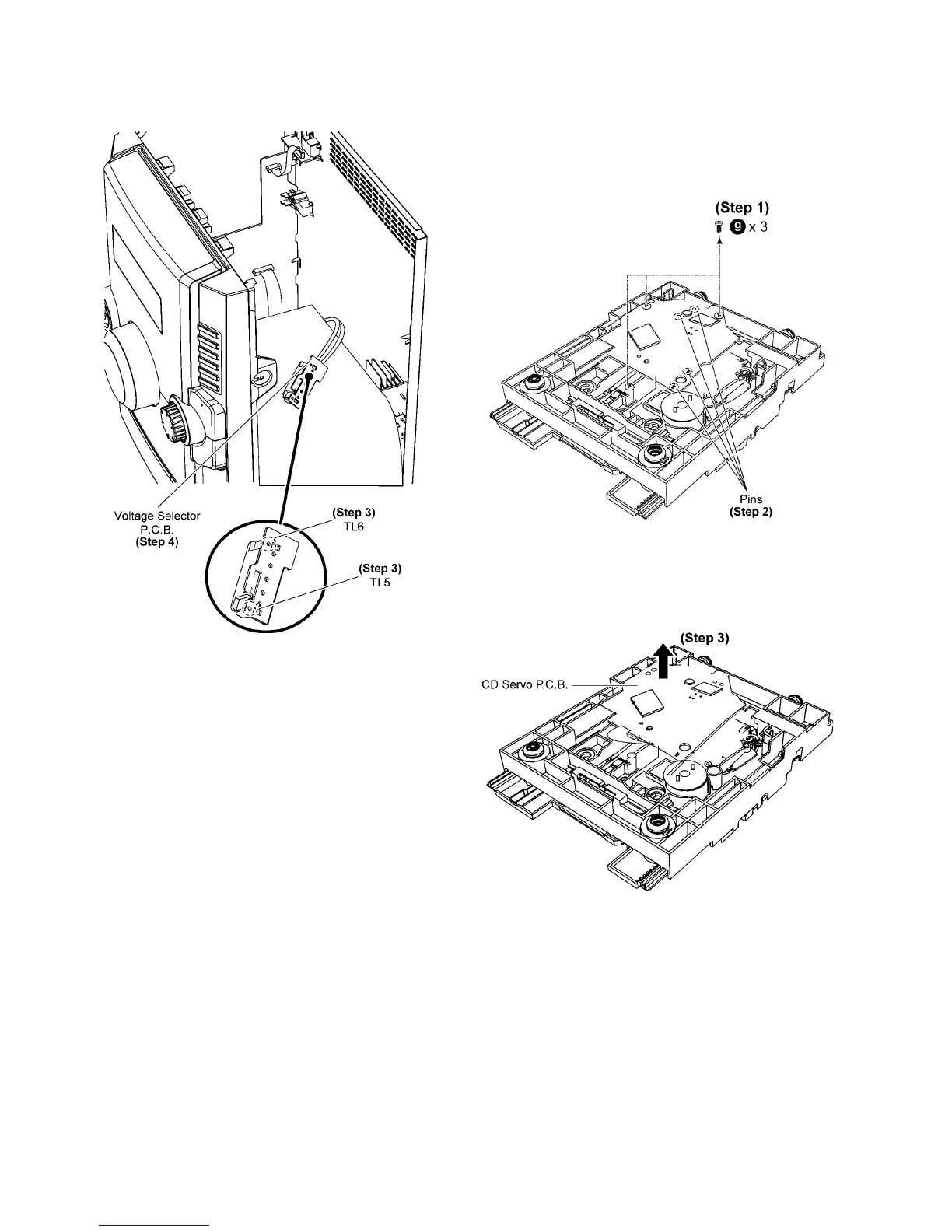

Step 3 Desolder 2 Wire pins, TL5(Black), TL6(Red) on the Volt-
age Selector P.C.B..
Step 4 Remove Voltage Selector P.C.B..
9.24. Disassembly of CD Servo
P. C. B.
• Refer to “Disassembly of CD Mechanism Unit (DLS6C)”.
Step 1 Remove 3 screws.
Step 2 Desolder 4 pins.
Step 3 Slightly lift up the CD Servo P.C.B..
Step 4 Flip the CD Servo P.C.B. as arrow shown.
