54
Caution: During assembling, ensure that SMPS Inner
Chassis Unit is catched onto Rear Panel properly.

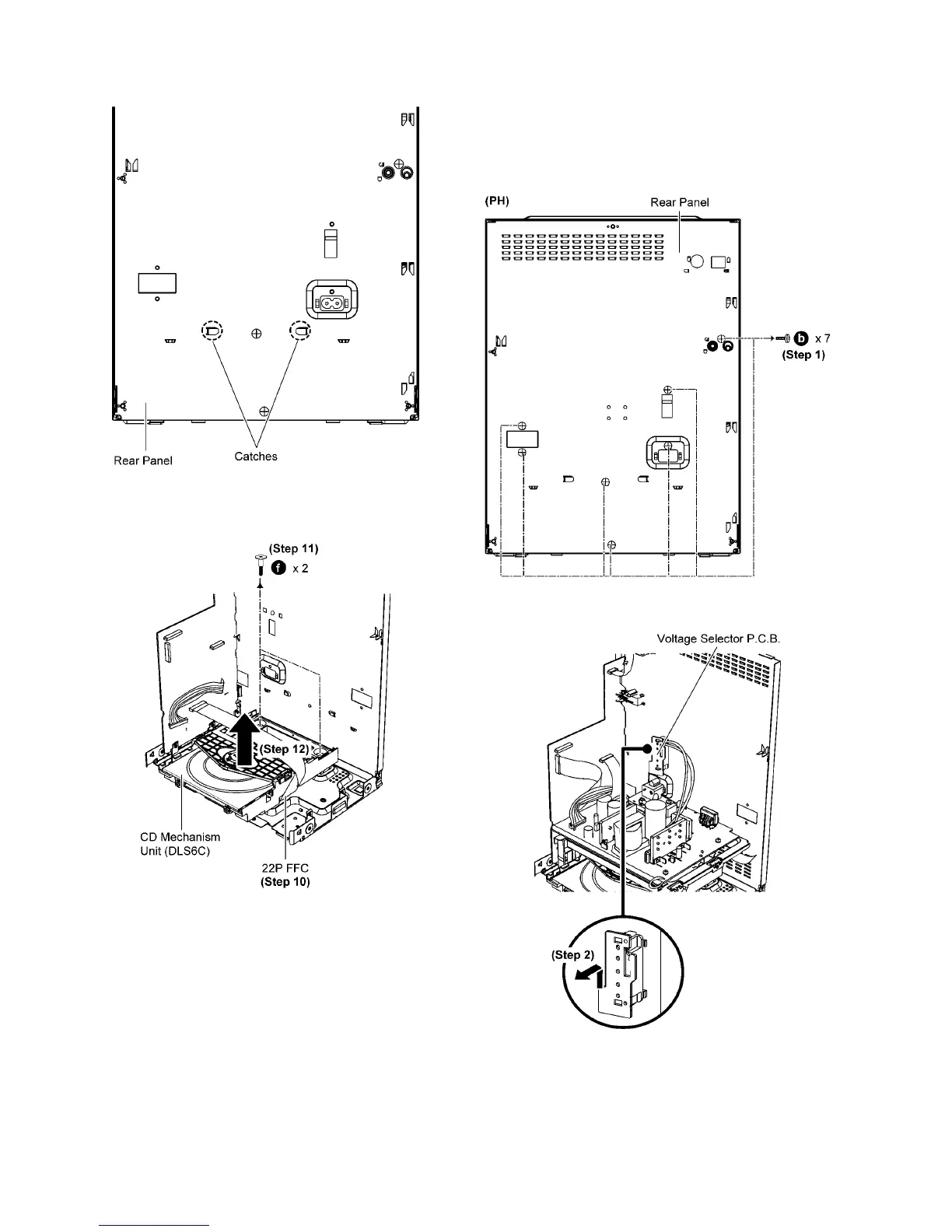

Step 10 Detach 22P FFC from CD Mechanism Unit (DLS6C).
Step 11 Remove 2 screws.
Step 12 Remove CD Mechanism Unit (DLS6C).
9.22. Disassembly of Rear Panel
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Tuner P.C.B.”.
Step 1 Remove 7 screws (For PH only).
Step 1 Remove 6 screws (For PN only).
Step 2 Detach Voltage Selector P.C.B. from Rear Panel as
arrow shown (For PH only).
To Next Page
