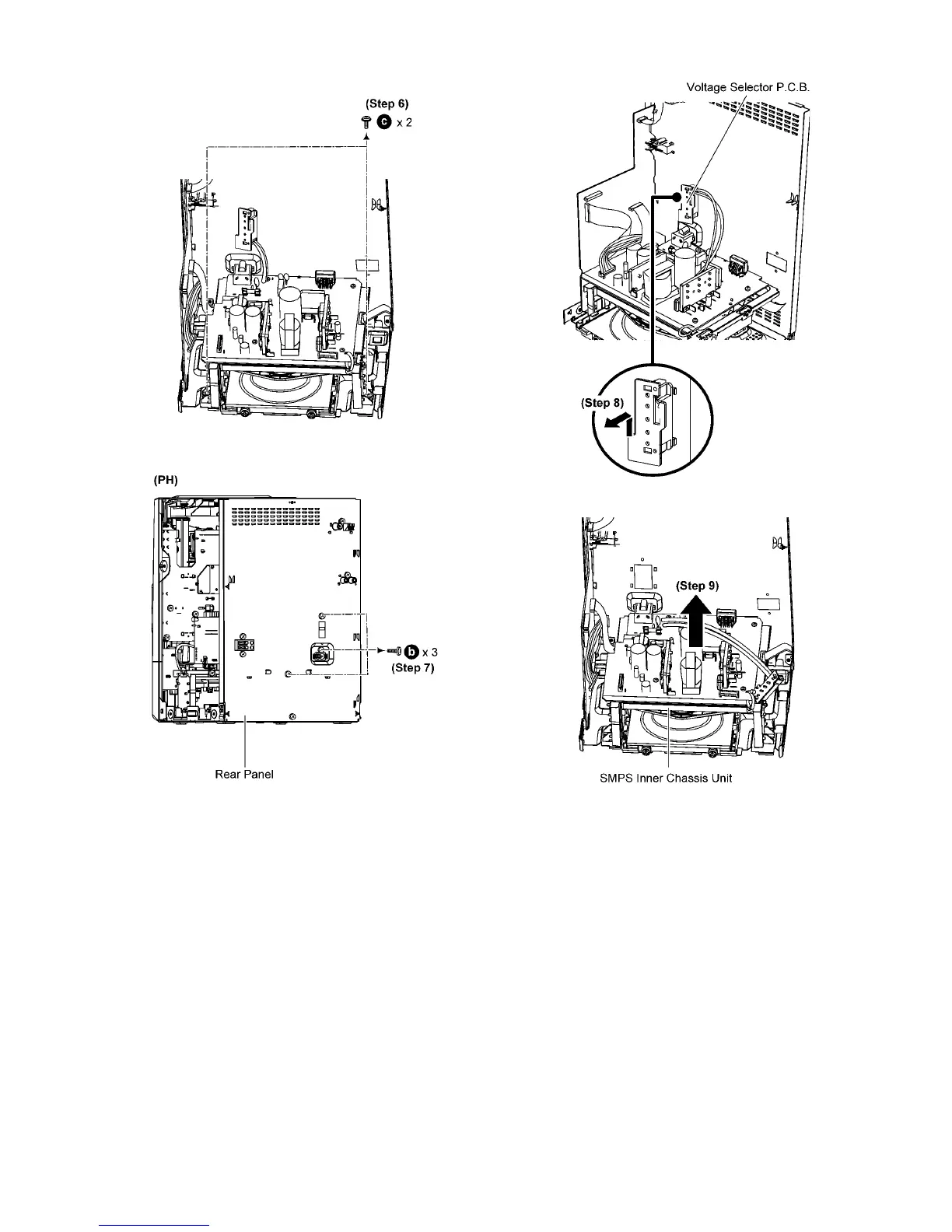

Step 6 Remove 2 screws.
Step 7 Remove 3 screws (For PH only).
Step 7 Remove 2 screws (For PN only).
Step 8 Detach Voltage Selector P.C.B. from Rear Panel as
arrow shown (For PH only).
Step 9 Lift up SMPS Inner Chassis Unit.
