Panasonic SA-AKX10PH - Disassembly of Voltage Selector P.C.B. (For PH only)

55

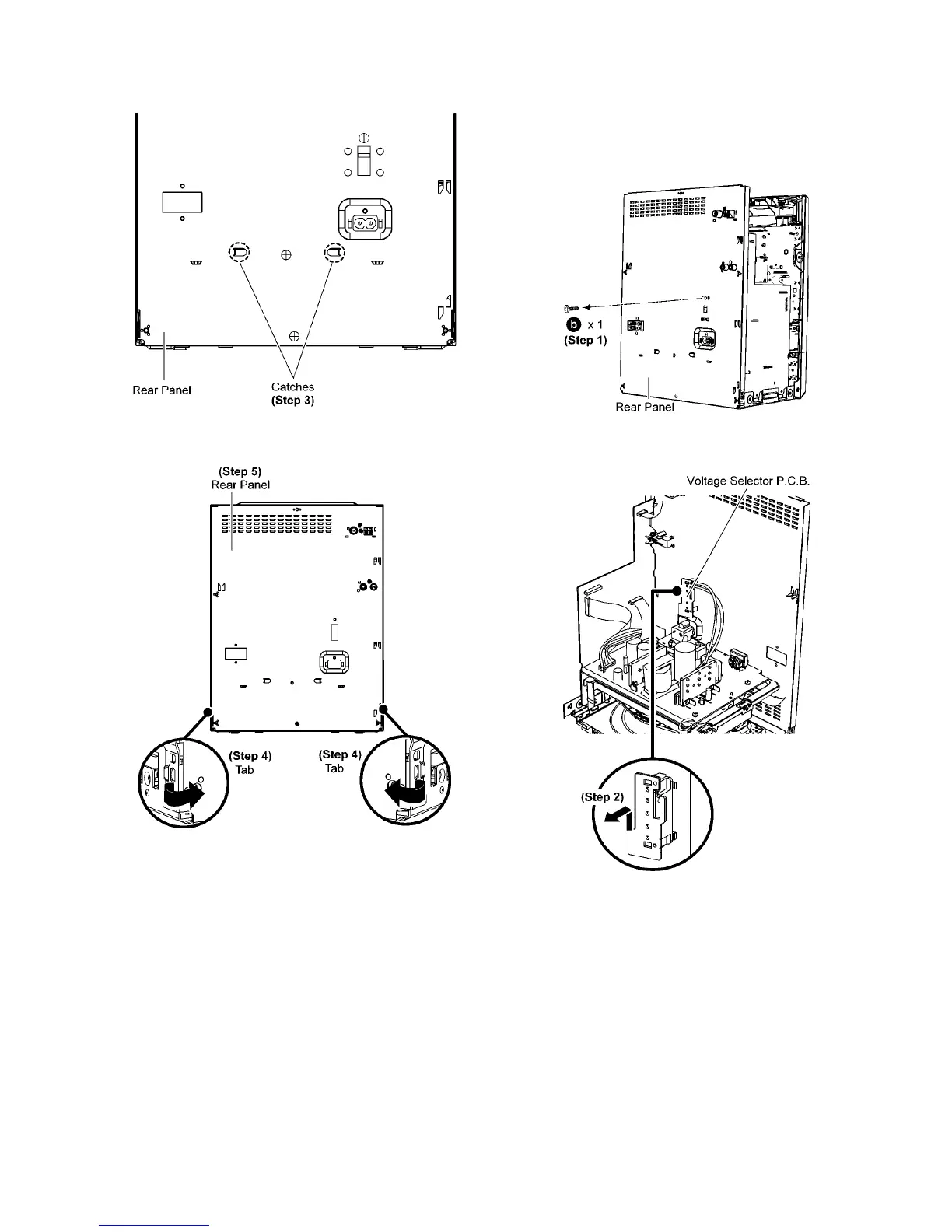

Step 3 Lift up the SMPS Inner Chassis Unit to release the catch
between the SMPS Inner Chassis Unit & the Rear Panel.
Step 4 Release 2 tabs.
Step 5 Remove Rear Panel.
9.23. Disassembly of Voltage Selec-
tor P.C.B. (For PH only)
• Refer to “Disassembly of Top Cabinet”.
Step 1 Remove 1 screw.
Step 2 Detach Voltage Selector P.C.B. from Rear Panel as
arrow shown.
