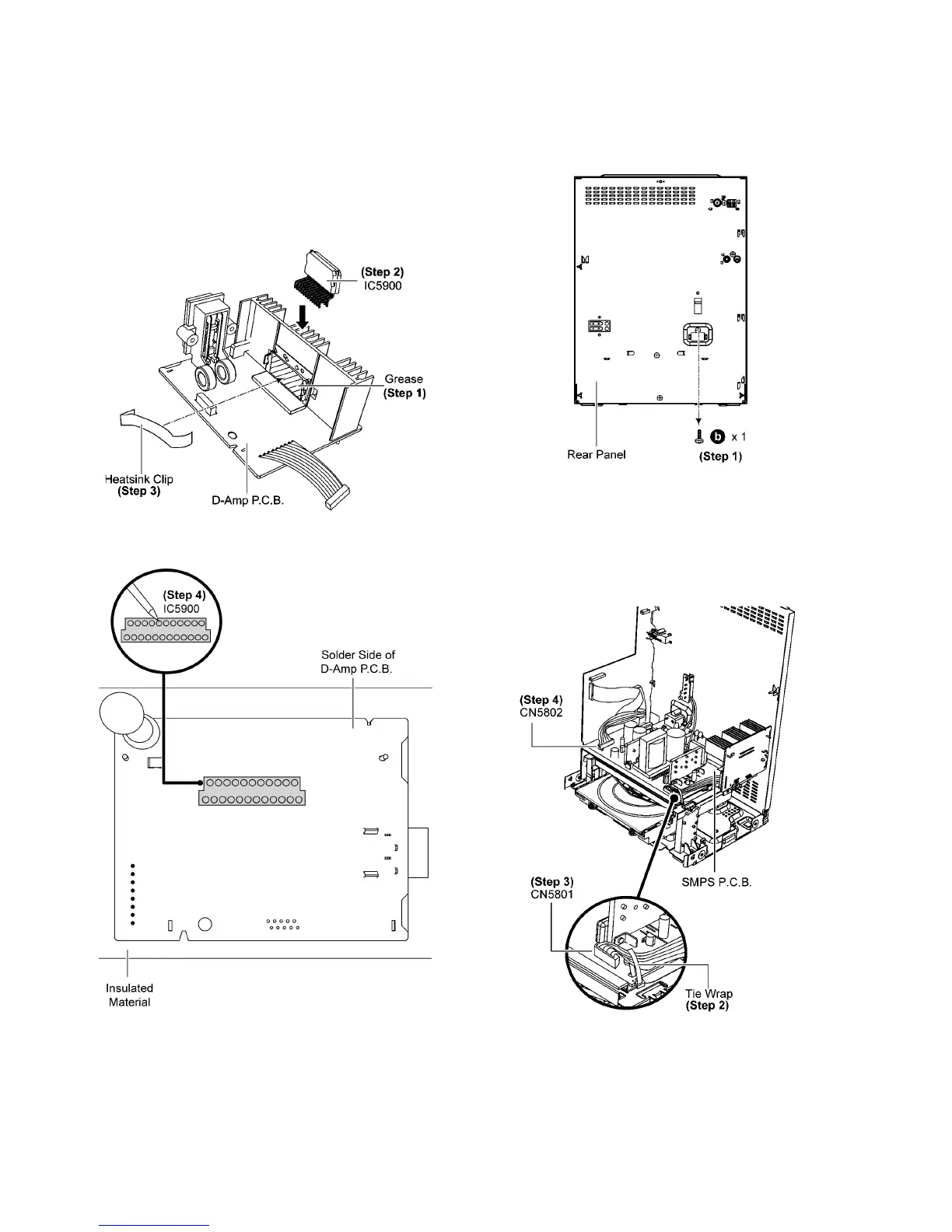

9.14.2. Assembly of Audio Digital Amp IC
(IC5900)
Step 1 Apply grease to the Heatsink.
Step 2 Install the Audio Digital Amp IC (IC5900) on D-Amp
P. C.B .
Caution: Ensure pins of the Audio Digital Amp IC (IC5900)
are properly seated on D-Amp P.C.B.
Step 3 Install Heatsink Clip to the Heatsink.
Caution: During assembling, ensure that Heatsink Clip is
catched onto Heatsink properly.
Step 4 Solder pins of the Audio Digital Amp IC (IC5900) on the
solder side of D-Amp P.C.B..
9.15. Disassembly of SMPS P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Assembly”.
Step 1 Remove 1 screw.
Step 2 Cut the Tie Wrap.
Caution: During assembling, tie the 6P Cable Wire with the
Tie Wrap to SMPS P.C.B. as diagram shown.
Step 3 Detach 6P Cable Wire at the connector (CN5801) on
SMPS P.C.B..
Step 4 Detach 11P Cable Wire at the connector (CN5802) on
SMPS P.C.B..
