Panasonic SA-AKX10PH - Disassembly of CD Mechanism Unit (DLS6 C)

52
9.21. Disassembly of CD Mecha-
nism Unit (DLS6C)
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Assembly”.

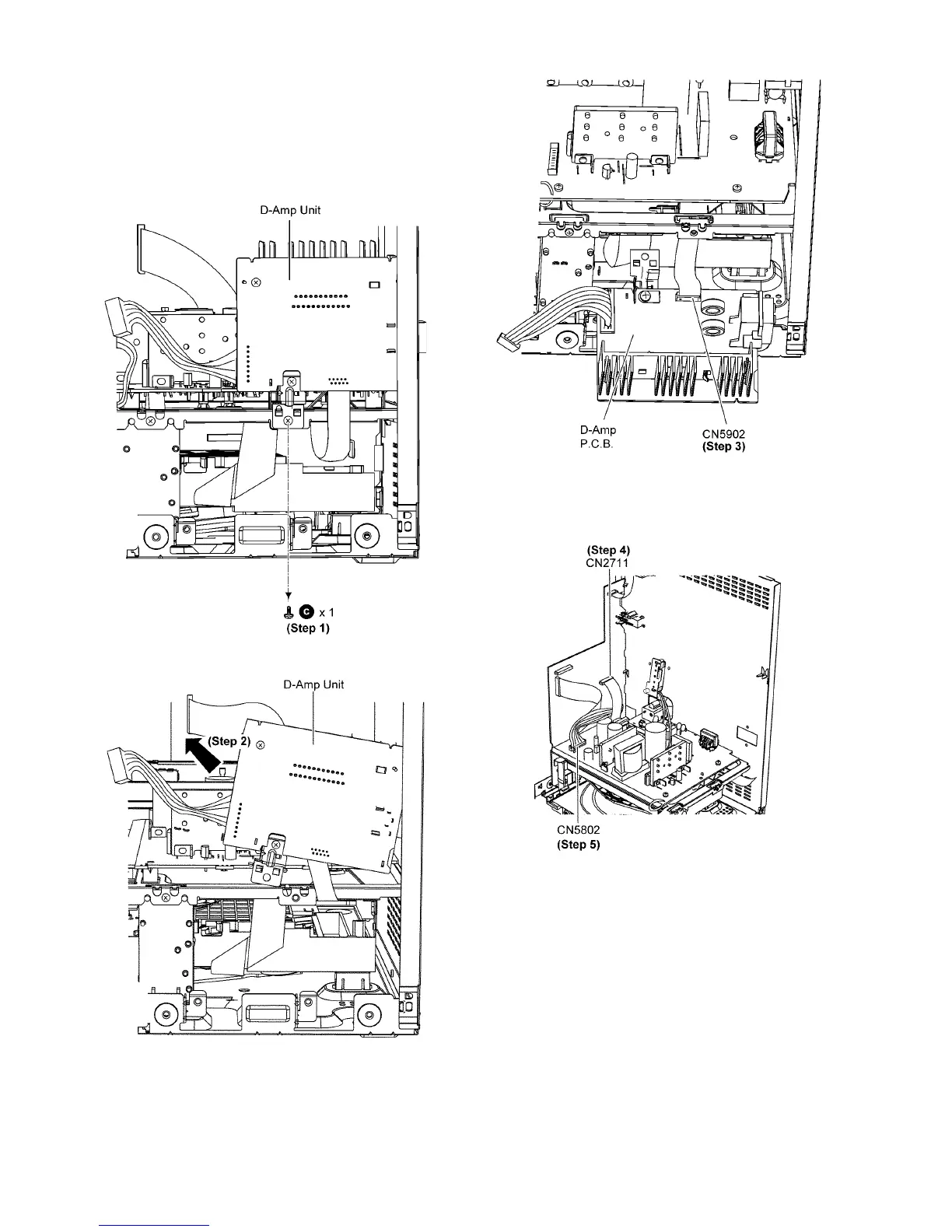

Step 1 Remove 1 screw.
Step 2 Release the D-Amp Unit from Inner Chassis catch.
Step 3 Detach 12P FFC (CN5902) on D-Amp P.C.B..
Step 4 Detach 12P FFC at the connector (CN2711) on Main
P. C. B ..
Step 5 Detach 11P Cable Wire at the connector (CN5802) on
SMPS P.C.B..
