10.2. Assembling Procedure

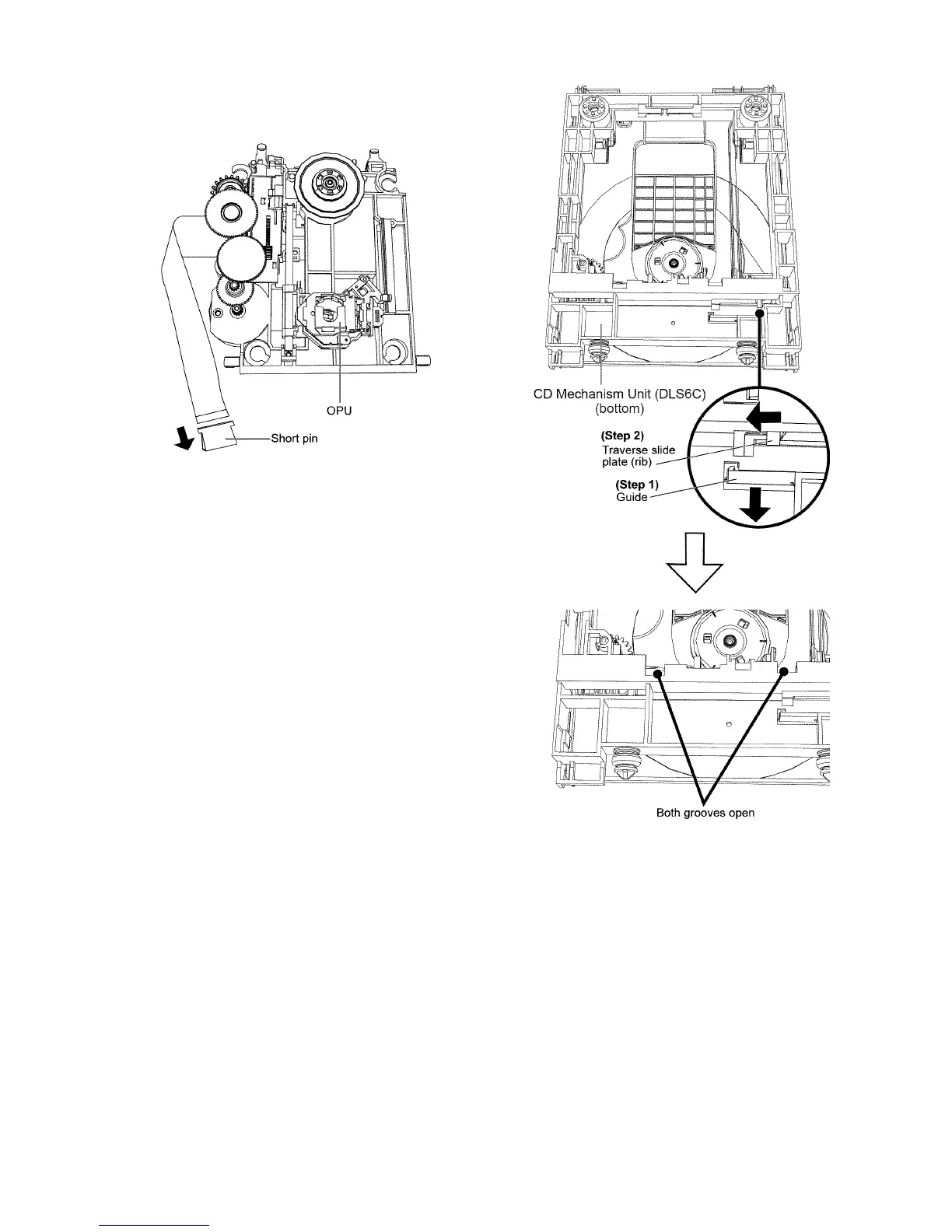

Caution: Removal of the short pin is necessary for replace-
ment of new traverse unit.
Step 1 Release the guide.
Step 2 Push the Traverse Slide Plate (rib), ensure both grooves
are opened.
