Panasonic SA-AKX10PH - Disassembly of CD Lid

38

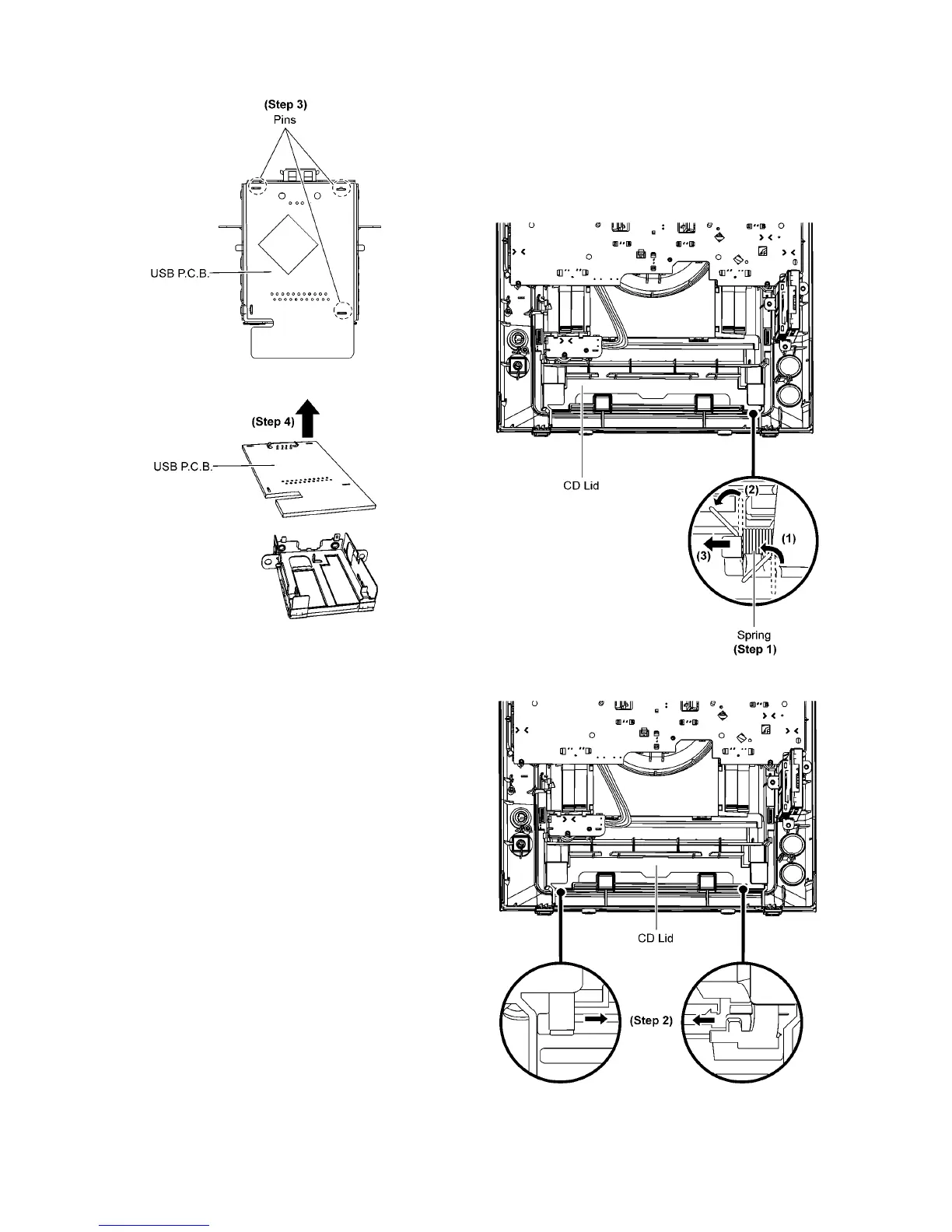

Step 3 Desolder 3 pins.
Step 4 Remove USB P.C.B..
9.10. Disassembly of CD Lid
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Assembly”.
Step 1 Remove the spring as arrow shown in order of
sequence (1) to (3).
Caution: During assembling, ensure that the spring is
assembly at right position.
Step 2 Remove CD Lid as arrow shown.
