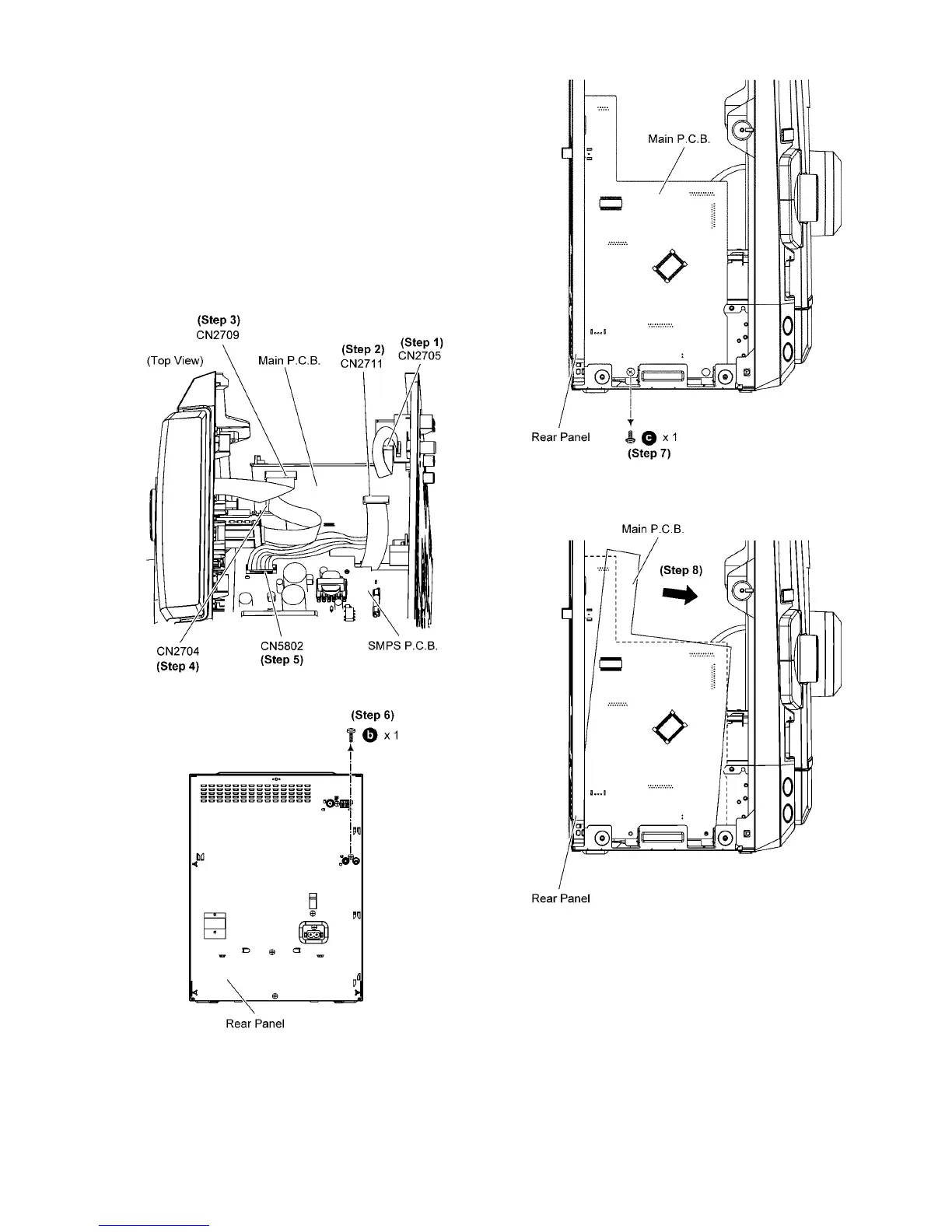

9.11. Disassembly of Main P.C.B.
• Refer to “Disassembly of Top Cabinet”.
Step 1 Detach 9P FFC at the connector (CN2705) on Main
P. C. B ..
Step 2 Detach 12P FFC at the connector (CN2711) on Main
P. C. B ..
Step 3 Detach 17P FFC at the connecter (CN2709) on Main
P. C. B ..
Step 4 Detach 22P FFC at the connecter (CN2704) on Main
P. C. B ..
Step 5 Detach 11P Cable at the connector (CN5802) on SMPS
P. C. B ..
Step 6 Remove 1 screw.
Step 7 Remove 1 screw.
Step 8 Detach Main P.C.B. from Rear Panel according to arrow
shown.
